MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module

MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module
MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module

Large Image :  MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: MT3608
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: static bag,poly bag
Delivery Time: 5-8 work days
Supply Ability: 10000 Piece/Pieces per Day
Contact Now

MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module

Description
Features: Step-up Application: Integraded Ciucuit
Type: Dc-dc, Voltage Regulator Mounting Type: Direct Mounting
Description: Mt3608 Dc-dc Power Supply Module Product Name: Amplifier Power Module
Warranty: 30~90 Days Color: Black
Model: MT3608 Voltage: Input 2/24V Lto 5/9/12/28V
Input Type: DC Port: Shenzhen Port
Highlight:

2A DC-DC increasing voltage Board

Specification
MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable amplifier power module

1. Module characteristics (booster module) :
1) maximum output current :2A.
2) input voltage :2 v ~ 24 v.
3) maximum output voltage :> 5v-28 v.
4).Efficiency: > 93%
2. Mechanical properties:

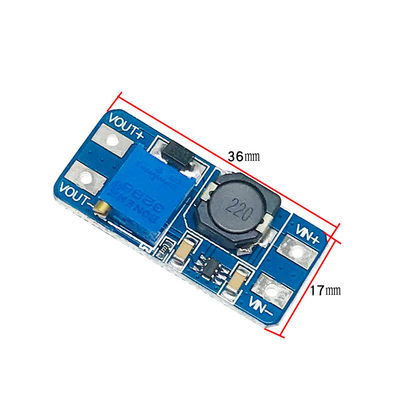

1).Product size :37.2 mm * 17.2 mm * 14 mm.

3. Use method

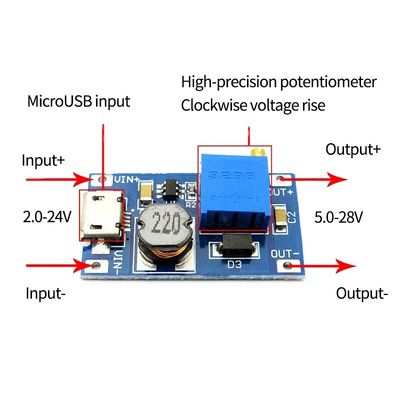

After the module,+ and -2 ~ 15v, adjust the potentiometer to adjust the output voltage, and the output voltage is higher than the input voltage.

4. Precautions
1).The input voltage shall not exceed the maximum input voltage.
2).The peak current output current is no more than 2A.

Product model
MT3608 2A (DC-DC) adjustable step-up module
Conversion efficiency
<96%
Input voltage
2V-24V
Switching frequency
1.2MHz
Output voltage
5V-28V
output ripple
<100mv
Output current
2A(MAX)
Load regulation
±0.5%
Voltafe regulation factor
+0.5%
Working temperature
-45℃~ +85℃
Size
37.2mm*17.2mm*14.0mm(L*W*H)
Weight
5g
Products Description

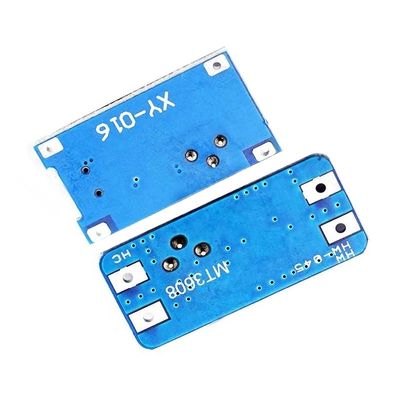

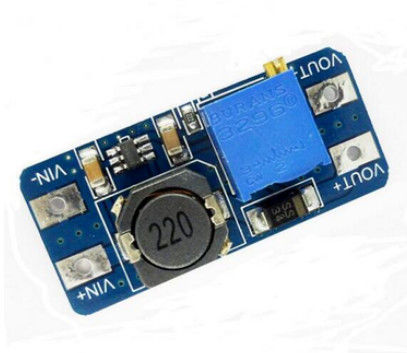

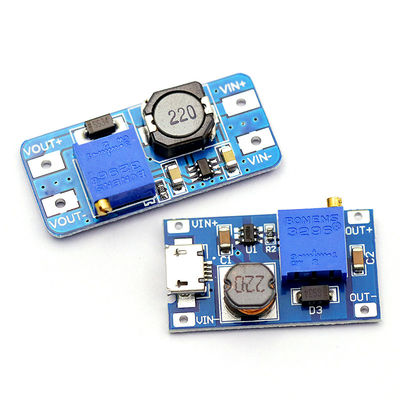

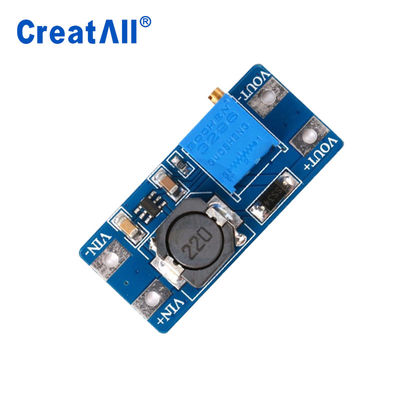

MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module 0
MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module 1
MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module 2
MT3608 2A DC-DC increasing voltage Board Wide Voltage Input 2/24V Lto 5/9/12/28V adjustable power module 3
Recommend Products
FAQ
Q1. What is your terms of packing?
A: Generally, our modules are all with Anti-static bag individually wrapped,also can be accepted customized package.
Q2. What is your terms of payment?
A: Full payment. Goods would be shipped in 1-3work days after payment received, finally depends on quantities.
Q3. What is your terms of delivery?
A: Generally EXW,can be according to customer’s requests.
Q4. How about your delivery time?
A: Generally, goods would be shipped in 1-3 work days after payment received, finally depends on order quantities.
Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
