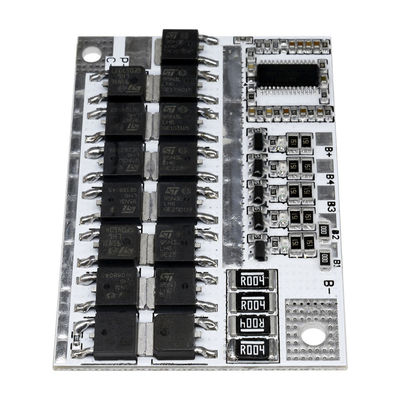

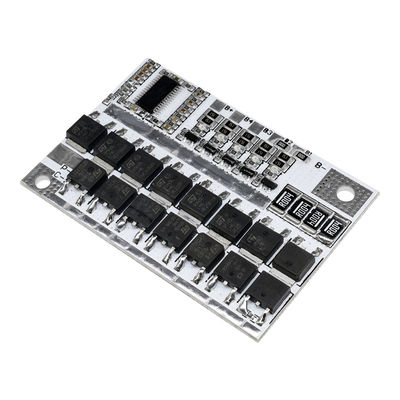

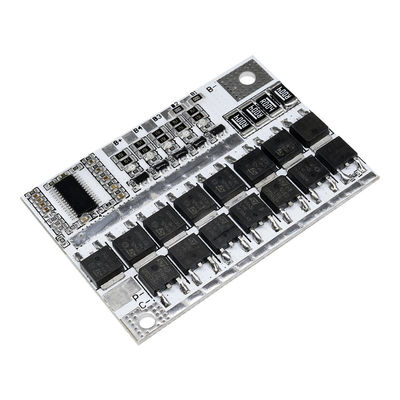

3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary

3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary
3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary 3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary 3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary 3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary

Large Image :  3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: BMS battery protection board
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Delivery Time: 5-8 work days
Supply Ability: 1000 Piece/Pieces per Day
Contact Now

3S 4S 5S BMS Battery Protection Board 12V 16.8V 21V 100A LMO Ternary

Description
Balancing Current: 2A-3A Balancing Mode: Automatic
Balancing Voltage: 3.6V-3.8V Communication Interface: CAN/RS485
Current: 20A-200A Name: BMS Battery Protection Board
Overcharge Protection: 4.25V-4.35V Overcurrent Protection: 20A-200A
Overdischarge Protection: 2.3V-2.5V Short Circuit Protection: Yes
Size: 120mm*90mm*20mm Storage Temperature: -40℃~125℃
Temperature Protection: Yes Voltage: 12V-60V
Working Temperature: -40℃~85℃ Input Voltage:: 5V
Charging Cut-off Voltage:: 4.2V ±1% Communication Interface: UART/CAN/I2C
Application: Electric Vehicle/Energy Storage/UPS Product Name: BMS Battery Protection Board
Protection Function: Over Voltage/Over Current/Short Circuit/Over Temperature/Under Voltage/Balancing
Highlight:

4S 5S BMS Battery Protection Board

,

BMS Battery Protection Board 12V 16.8V

3S 4S 5S BMS 12V 16.8V 21V 100A Li-ion LMO Ternary Lithium Battery Protection Circuit Board Li-POLYMER Balance Charging Module

Products Description:

3S Description:

  • 100% Brand new and high quality 18650 battery charging Module FOR Lithium POLYMER protection Board(3.7V)

  • Single cell battery overcharge protect voltage : 4.21-4.29 V

  • Single cell battery overcharge protect recover voltage : 4.14-4.24V

  • Overcharge protect delay : 1.5-2.5S

  • Single cell battery over-discharge protect voltage : 2.72-2.88 V

  • Overcharge protect Current : 100A

  • Over-discharge protect Current : 100A

  • Over-discharge protect delay : 0.5-1.5S

  • Temperature protect : Yes

  • Disconnect protect : Yes

  • Shortage protect : Yes

  • Shortage delay : 100-600 uS

  • Shortage protect recover : YES

  • Charging Current : 60A

  • Current Balance : Yes

  • Ampere balance (Current) : 60MA

  • Voltage alance accuracy : 4.14-4.24V

4S Description:

  • This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 4S ternary lithium.
  • Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.
  • Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A. 4.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.



  • Parameter: FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
  • Single cell battery overcharge protect voltage : 4.21-4.29 V
  • Single cell battery overcharge protect recover voltage : 4.14-4.24 V
  • Overcharge protect delay : 1.5-2.5S
  • Single cell battery over-discharge protect voltage : 2.72-2.88 V
  • Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
  • Over charge protective current:100A
  • Over discharge protective current:100A
  • Over-discharge protect delay : 0.5-1.5S
  • Temperature protect : Yes,have Temperature control interface.
  • Disconnect protect : Yes
  • Shortage protect : Yes
  • Shortage delay : 100-600 uS
  • Shortage protect recover mode: Off load release.
  • Contact discharge current:80A
  • Synopline discharge current:60A
  • Charging current:60A
  • balance function:yes
  • Ampere balance (Current) : 60MA
  • Current balance accuracy : 4.14-4.24V

5S Description:

  • This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 5S ternary lithium.
  • Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.
  • Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A. 4.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc. Parameter: FOR Li-POLYMER LiMnO



  • Protect Parameter(3.6V/3.7V)
  • Single cell battery overcharge protect voltage : 4.21-4.29 V
  • Single cell battery overcharge protect recover voltage : 4.14-4.24 V
  • Overcharge protect delay : 1.5-2.5S
  • Single cell battery over-discharge protect voltage : 2.72-2.88 V
  • Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
  • Over charge protective current:100A
  • Over discharge protective current:100A
  • Over-discharge protect delay : 0.5-1.5S
  • Temperature protect : Yes,have Temperature control interface.
  • Disconnect protect : Yes
  • Shortage protect : Yes
  • Shortage delay : 100-600 uS
  • Shortage protect recover mode: Off load release.
  • Contact discharge current:80A
  • Synopline discharge current:60A
  • Charging current:60A
  • balance function:yes
  • Ampere balance (Current) : 60MA
  • Current balance accuracy : 4.14-4.24V
  • Package include: 1 x 3S/4S/5S BMS 12V 21V 100A Li-ion LMO Ternary Lithium Battery Protection Circuit Board Li
  • POLYMER Balance Charging Board Module
