Product Details:
|
| Description: | DC Motor | Working Voltage: | 4.5V-35V |
|---|---|---|---|
| Power: | 90W(max) | Static Current: | 7U A (standby State) |
| PWM Duty Cycle: | 1% | PWM Frequency: | 20KHZ |
| Dimensions: | 30MM*26MM*14MM | Weight: | 0.013KG |
| Port: | Shenzhen Port Guangzhou Port | [driving Voltage: | 9 |
| [Working Current: | 9 | Display: | LED Digital Display |

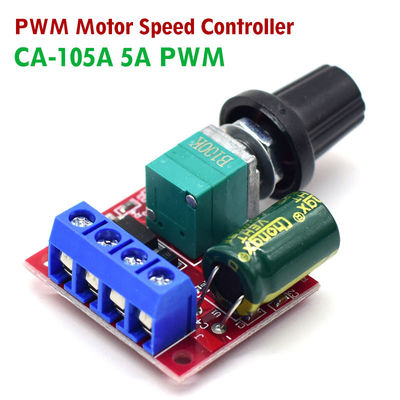

| Product Name: | PWM Motor Speed Controller | Protection: | Over-current, Over-voltage, Short-circuit Protection |
| Storage Temperature: | -40℃-85℃ | ||
| Highlight: | CA555 Dc Motor Speed Controller Module,5A Dc Motor Speed Controller Module,Dc Motor Speed Controller Module 90W |
||
Product parameters:
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz

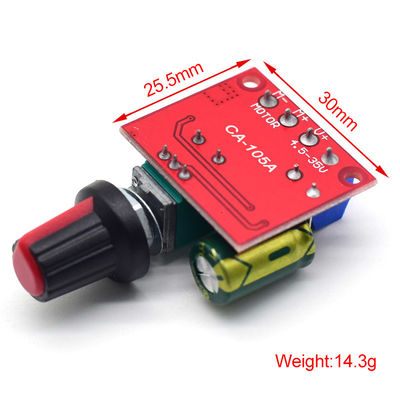

Size: 30mm x 26mm x 14mm (Without Handle)
Precautions:
DC motor governor input isDC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!

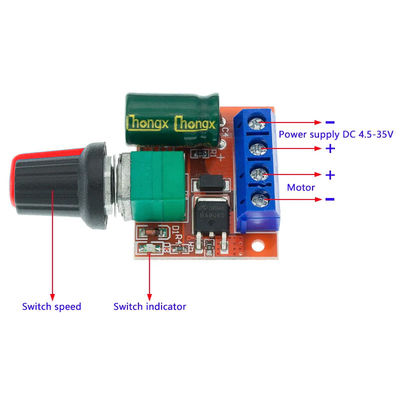

DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged. The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction.
Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Package Included:
1 x 5V-35V Speed Control Switch
