Product Details:
|
| Type: | Dc Dc Converter | Brand: | Creatall |
|---|---|---|---|
| Working Voltage: | DC 12V - DC 40V | Control Power: | 0.01 - 400W |
| Current: | Rated 8A, Max 10A | Static Current: | 0.02 A ( Standby ) |
| PWM Duty Cycle: | 10% -100% | PWM Frequency: | 13 KHz |
| Size (L*W*H): | 6cm X 5.5cm X 2.8cm/2.36"x 2.16"x1.10"(approx) | Port: | Shenzhen Port.guangzhou Port |
| [driving Voltage] DC:: | 7-12V | [Working Current]: | ≤1.2A |

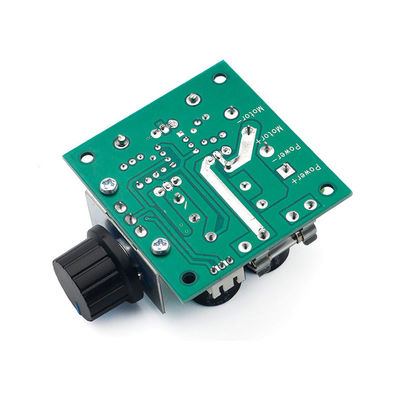

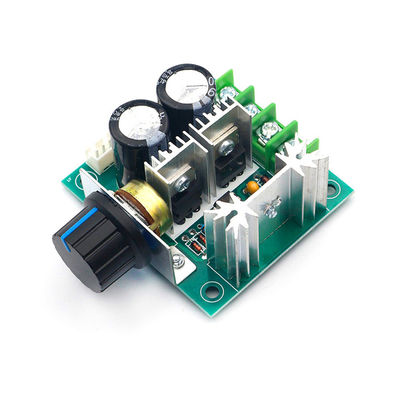

| Display: | LED Digital Display | Product Name: | PWM Motor Speed Controller |
| Protection: | Over-current, Over-voltage, Short-circuit Protection | Storage Temperature: | -40℃-85℃ |
| Highlight: | 13KHZ Governor Speed Controller,40V Generator Governor Speed Control,Generator Governor Speed Control 1000uF |
||
100% brand new and high quality
Control the speed of a DC motor with this controller.
High efficiency, high torque, low heat generating.
With reverse polarity protection, high current protection.
Specification
Model: CCMHC
Working Voltage: DC 12V - DC 40V.
Control Power:0.01 - 400W.
Current: Rated 8A, Max 10A.
Static Current:0.02 A ( Standby ).
PWM Duty Cycle:10% -100%.
PWM Frequency:13 KHz.
Material: Plastic, metal.
Size (L*W*H): 6cm x 5.5cm x 2.8cm/2.36"x 2.16"x1.10"(approx)
4 hole diameter: 3 mm(approx)
Package Included:
1 x 10A 12V-40V Pulse Modulation 13khz PWM DC Motor Adjuster Speed Control Switch
