Product Details:
|
| Type: | Dc Dc Converter | Brand: | Creatall |
|---|---|---|---|
| Condition: | New | Port: | Shenzhen Port, Guangzhou Port |
| [driving Voltage: | 9 | [Working Current: | 9 |
| Display: | LED Digital Display | Product Name: | PWM Motor Speed Controller |
| Protection: | Over-current, Over-voltage, Short-circuit Protection | Storage Temperature: | -40℃-85℃ |
| Highlight: | 90W PWM Motor Speed Controller,80W PWM Motor Speed Controller,30W dc pwm controller |
||

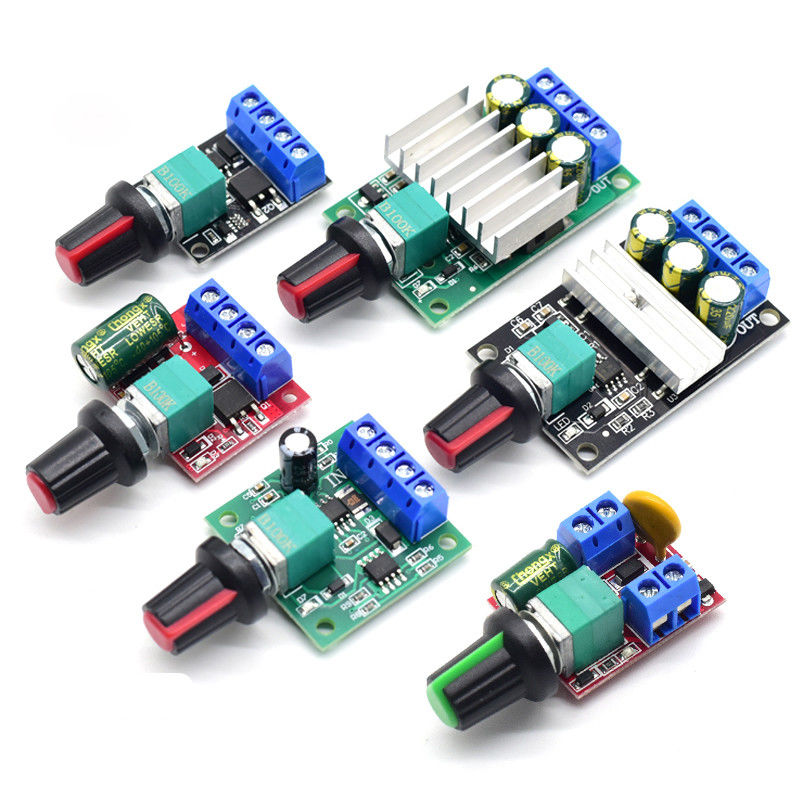

Features:
This Brand New 1803BK DC Motor Speed Controller allows controlling the directionof a DC the motor using a Pulse-Width-Modulated (PWM) DC voltage with a DutyCycle fully the product adjust from 0%-100%. With a self-recovery fuse 2A and a Power-On LED light. Enable to provide a continuous current of 2A to your DC motor or other DC load.
Specifications:
Input supply voltage:1.8V-15VDC
The max output power:30W
The max continuous output current :2A
Duty Cycle adjustable: 0%-100%

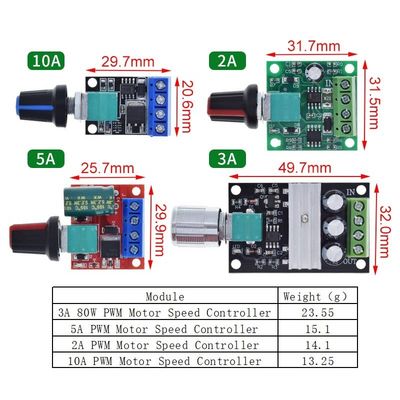

Size:approx.31.7*31.5*15mm
Net weight: approx.14g
Note: DC motor speed regulator DC power supply, do not be directly connected tohousehold 220V AC.
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not reflect the actuacolor of the item. Thanks for your understanding.

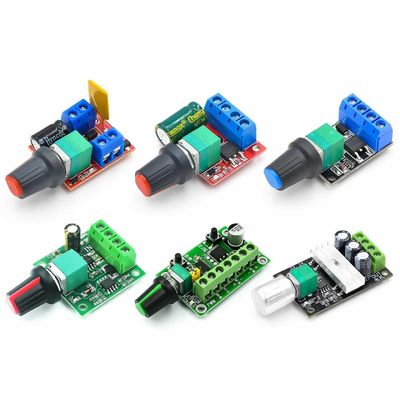

This DC Motor Speed Controller allows controlling the direction of a DC motor usinga Pulse-- Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from0%-100%.
The motor speed controller can easily provide a continuous current of3A to your DCmotor or other DC load.
Main technical parameters:
-Input supply voltage:6V-28VDC
- The maximum output power: 80W
The maximum continuous output current :3A
- Duty Cycle adjustable:5%-100%

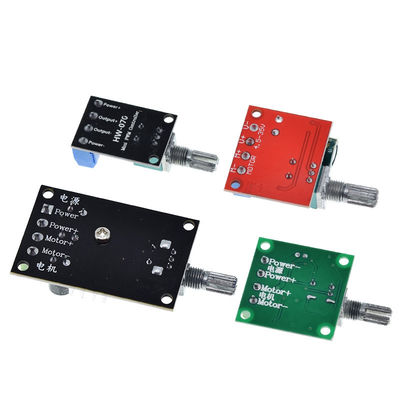

Operating instruction:
1. Connect your DC motor (or DC load) to the motor terminals as indicated on thewiring diagram.
2. Connect a voltage of 10V-36V DC to the circuit making sure of the correct polarityof the connection. Note that the voltage applied to the motor will be supply voltageapplied to the circuit. lt is recommended to add an appropriately rated fuse inline withthe positive supply in order to protect the circuit from any possible short circuits.
3. You can now control the speed of the motor through potentiometer.
Product parameters:
Operating voltage:DC4.5V-35VOutput current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz
Size: 30mm x 25.7mm x 14mm (without handle)
Precautions:
DC motor governor input for the DC, can not be directly connected to the AC (forexample: 220V AC 220V), otherwise it will burn!
The positive and negative terminals of the DC power supply are not reversed.otherwise the governor may be damaged.
The motor can be either positive or negative. When the direction of operation andexpectations do not match, you can adjust the direction of the line order.
Adjust the potentiometer knob to change the governor output duty cycle, the motorspeed changes.
