Product Details:
|
| Display Type: | Digital Only | Measuring Range: | 50-500V |
|---|---|---|---|
| Dimensions: | 3.4*3.4*1.8cm | Ship Way: | By Air Or By Sea |
| Manufacturer: | Yes | Delivery Time: | Ship Out Within 24hours |
| Port: | Shenzhen Port,guangzhou Port | ||
| Highlight: | AC 50V Digital Ammeter Voltmeter,Digital Ammeter Voltmeter Two Wire,50v ammeter and voltmeter |
||
AC50-500V
【Product parameters】:
Measuring range: AC 50-500V
Power supply range: AC 50-500V
Minimum startup voltage: 3.8V
Allowable error: ±1%
Input impedance: >100kΩ
Working current: less than 20mA, generally 5-15mA
Refresh speed: about 0.35s-times
Display mode: three-digit circular LED high-brightness digital tube
Display color: red, green, blue optional
Lead length: 20cm

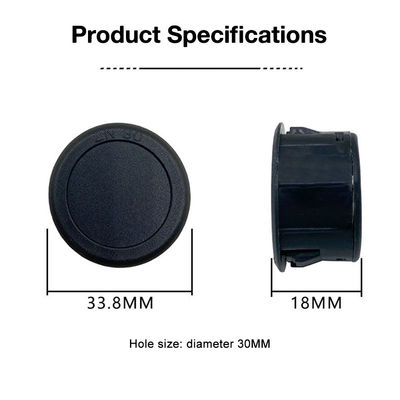

Size: Diameter 33.8
Opening size: diameter 30.0
Working temperature: -10℃.65℃
【Notice】:
The voltage is divided into DC and AC, the DC voltage cannot exceed 100V, and the AC voltage can reach 500V
【Package list】:
1 x AC50-500V AC round voltmeter (3 colors optional)
DC4-100V
【Features】:
1.Ultra-thin mirror
2.Round hole
3.Easy to install
4.Reverse polarity protection
5.Reverse connection does not burn
【Product parameters】
Measuring range: 4V-100V
Power supply range: 4V-100V
Minimum startup: 3.8V
Allowable error: ±1%
Input impedance: >100K ohms
Operating current: red <15mA, green <12mA, blue <12mA
Refresh rate: about 300mS/time
Display mode: three-digit circular LED digital tube
Display color: red, green, blue optional
Lead length: 20cm
Dimensions: Diameter 33.8
Hole size: diameter 30.0
Working temperature: -10℃～65℃
Note: Input voltages higher than 100V may be permanently damaged
【Package list】:
Digital DC Voltmeter X1
