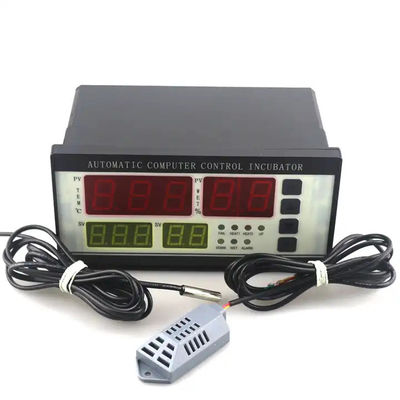

Product Details:
|
| Humidity Range:: | 00%~99%RH | Humidity Control Accuracy:: | 0.1% RH |
|---|---|---|---|
| Measurement Accuracy:: | +/- 2% RH | Load Power:: | 12v 120w Or 24v 240w Or 220v 1500w (depending On Your Choice) |
| MAX Output:: | 10A | Output Type:: | Direct Output |
| Highlight: | 1NTC Digital Humidity Controller,Digital Humidity Controller 0.1oC Resolution |
||
Product Overview:
Suitable for all kinds of seafood machine,water chiller and other equipments which need automatic switching between redrigerating and heating.
Features:
1.Switch the modes between cool and heat;
2.Control temperature by setting the temperature setting value and the difference value;
3.Temperature calibration;
4.Refrigerating control output delay protection;
5.Alarm when temperature exceeds temperature limit or when sensor error.
Main Function:
Refrigeration,heating,Alarm 1NTC,Temperature Calibration
Parameter:
2. Resolution: 0.1oC;
3. Accuracy: ±1oC (-50~70oC);
4. Sensor error delay: 1 minute
5. Power supply: 220VAC±10%, 50/60Hz;
6. Power consumption: ≤3W;
7. Sensor: NTC sensor (1PC);
8. Relay contact capacity: Cool 10A/250VAC;Heat 10A/250VAC;
9. Ambient temperature: 0~60oC;
10.Storage temperature: -30~75oC;
11.Relative humidity: 20%~85% (No condensate)
