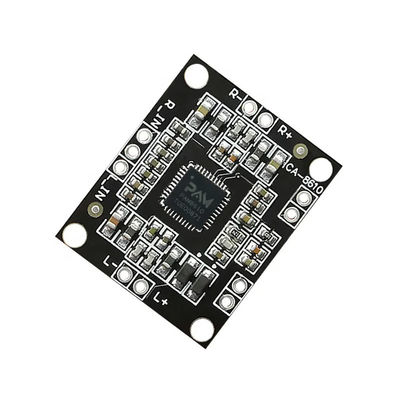

Product Details:
|
| Model: | CA-8610 | Voltage: | DC 12v |
|---|---|---|---|
| Current: | More Than 3A | Power: | 2*3W |
| Type: | Mini Amplifier | Size: | 30*30MM |
| Efficiency: | >90% | Static Current: | 20mA |
| Input Impedance: | 4-8Ω | ||
| Highlight: | 3W Audio Amplifier Bluetooth Module,20KHz Audio Amplifier Bluetooth Module,Compact Audio Amplifier Module 5v 3w |
||
Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Application: Speaker
Model Number:Amplifier Board Digital
Model:CA-8610
Chip Model: PAM8610
Input Voltage:DC 12V
Output power: 10W+10W(8Ω load), 15W+15W(4Ω load)
Efficiency: >90%
Static current: 20mA
Input impedance: 4-8Ω
Product size: 30*30*2mm

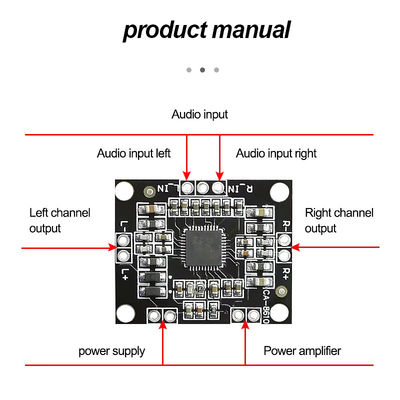

Notes:
1. Power supply voltage: <16V, please do not exceed this voltage supply, positive and negative poles do not reverse.
2. Recommended power supply for the 12V3A better filtered power supply.
3. Speakers recommended 4-8Ω, 10W or 15W.
4. Do not short-circuit audio inputs to each other or to ground.
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
