Product Details:
|
| Name: | 200W Mono Power Amplifier | Size: | 120 X 60 X 45MM |
|---|---|---|---|
| Material: | Abs | Real Power: | Undistorted Power 200W, Maximum Power 300W. |
| Highlight: | ABS Mono Amplifier Board,200w Mono Amplifier Board,200 Watt Mono Amplifier Board |
||
1. The board is a single-channel power amplifier board, which requires dual-channel

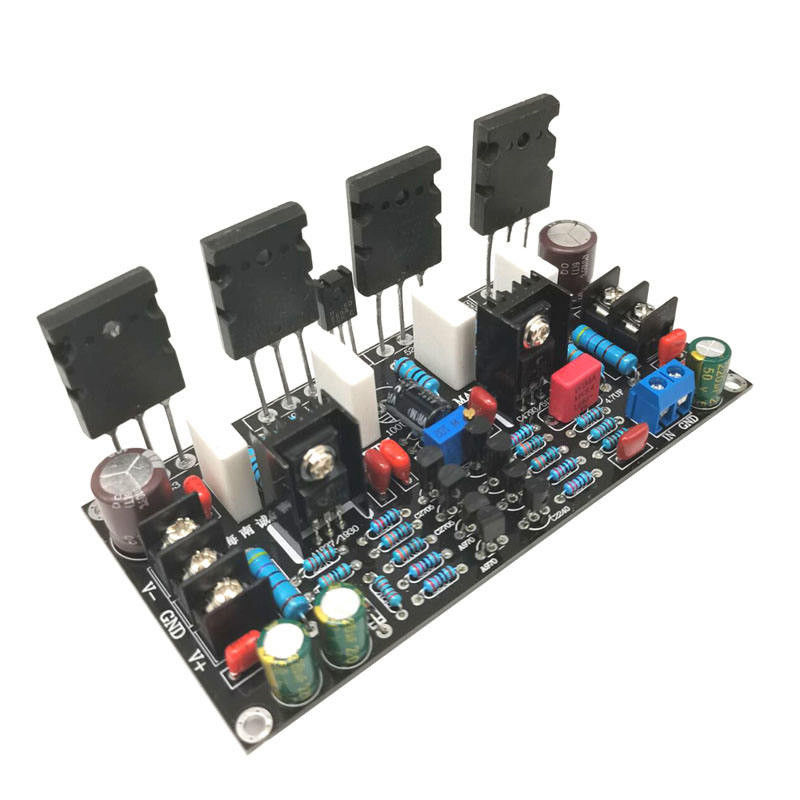

2. The circuit design uses A970/C2240 high-voltage audio pair tube dual differential circuit and A1145/C2705 for voltage amplification to promote the use of mid-power pair tube A1837/C4793, and the output stage uses A1943/C5200 high-power Toshiba pair tube.
3.Wide power supply range, DC plus or minus 20V-90V can be, as long as enough power is supplied to easily reach 200, the sound
quality is good, the driving force is strong, and the 15-inch speaker is pushed without pressure!

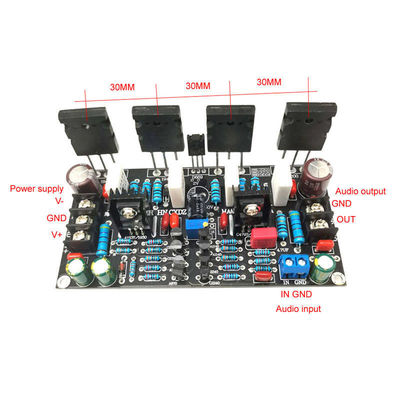

4. Power supply: dual voltage, DC plus or minus 20-90V (the upgraded version has optimized the circuit and parts, but To directly apply high voltage, it is recommended to use below 90V, do not challenge the voltage limit. )
5. Real power: undistorted power 200W, maximum power 300W.
The Amplifier Audio Module is shipped in a secure and durable packaging in order to ensure its safety during transportation. The package is designed to protect the product from external damage and shock.
The product is shipped via ground or air, depending on the customer’s preference. Shipping costs are calculated based on weight and distance.
