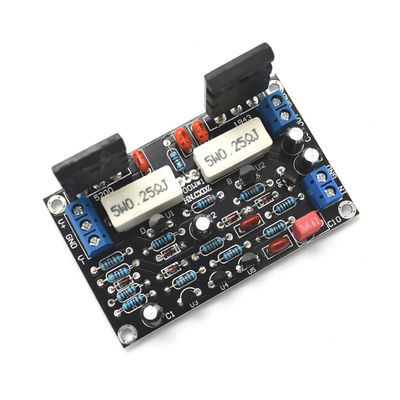

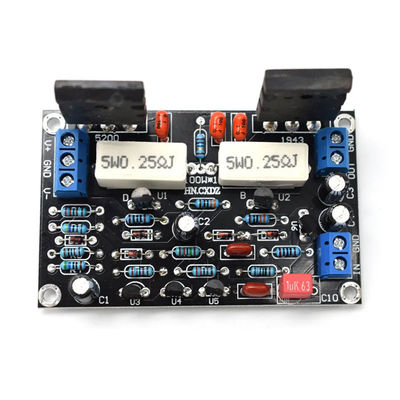

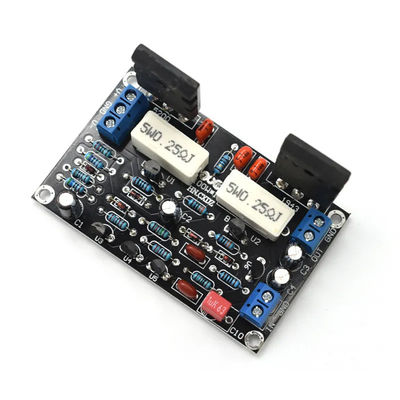

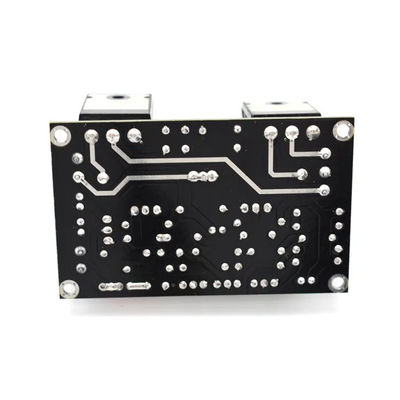

Product Details:
|
| Product Model: | 2SC5200+2SA1943 | Product Size: | 80*50*35mm |
|---|---|---|---|
| Operating Voltage: | Dual DC 10 - 45V | Recommended Dual: | DC 35V |
| Rated Output Power: | 100W(4 Ohm ± 35V) | Maximum Output Power: | 150W (4 Ohm ± 45V) |
| Highlight: | 2SC5200+2SA1943 Hifi Audio Amplifier Board,100W Hifi Audio Amplifier Board,DC 35V Audio Amplifier Board |
||
Features:
1. The noise of the switch is small and will not have too much impact on the speaker. It is recommended to add a horn protection
circuit. The horn protection circuit can not only eliminate the impact noise of the power amplifier switch machine, but also avoid
the output DC burning the horn when the power amplifier is damaged.
2. The bottom noise is small. Zero floating small, do not need to do any debugging after installation, the output zero drift
voltage will generally not exceed 50mv, and is relatively stable.
3. Free debugging. As long as the connection is correct, no one is wrong, basically it is a success, no need to do any debugging,
beginners also have a very high success rate.
The Amplifier Audio Module is shipped in a secure and durable packaging in order to ensure its safety during transportation. The package is designed to protect the product from external damage and shock.
Packaging materials include: cardboard box, foam, bubble wrap, and plastic wrapping.
The product is shipped via ground or air, depending on the customer’s preference. Shipping costs are calculated based on weight and distance.
