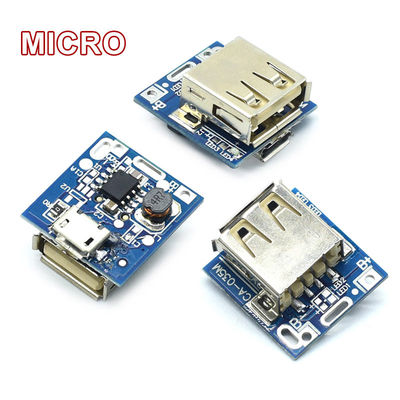

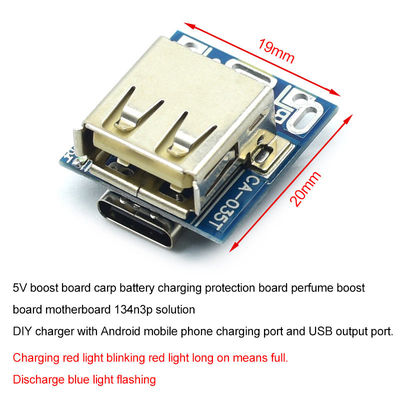

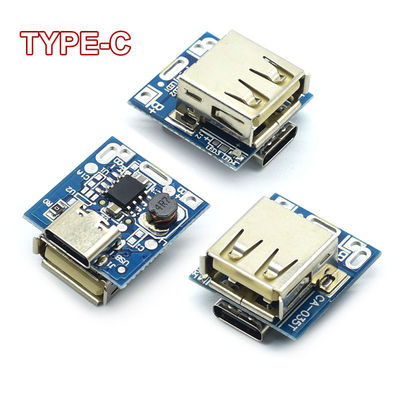

CA-035 5V Boost Step Up Power Module Lithium LiPo Battery Charging Protection Board LED Display USB For DIY Charger

CA-035 5V Boost Step Up Power Module Lithium LiPo Battery Charging Protection Board LED Display USB For DIY Charger

Product Parameter:

• Input voltage: 3.7V~5.5V
• Charging current: Max. 1A
• Output current: Max. 1A
• Output voltage: 5V
• BAT discharge termination voltage: 2.9V
• Preset: 4.2V charging voltage
• Accuracy:+1%
• Maximum standby current: 8uA
• Discharge frequency: 85%
• (Input 3.7V,Output 5V/1A)

Product Features:

• Charging and discharging status indication
• Built-in charging and discharging power MOS
• Integrated Charge Management and Discharge Management
• Intelligent temperature control and over-temperature protection
• Integrated output over-voltage protection, short-circuit protectionheavy load protection.
• Integrated overcharge and overdischarge protection
• Trickle mode and zero-voltage charging are supported.
