Product Details:
|
| Application: | Integrated Circuit | Type: | Integrated Circuit |
|---|---|---|---|
| Mounting Type: | Direct Mouting | Description: | Ca-1235 Power Supply Module |
| Item: | CA-1235 | Size: | 30*20mm |
| Voltage: | Input 5-15v | Port: | Shenzhen Port Guangzhou Port |
| Highlight: | 3A DC-DC Converter Board Mount,Adjustable DC-DC Converter Board Mount,Adjustable Step-Down Power Supply Module |
||

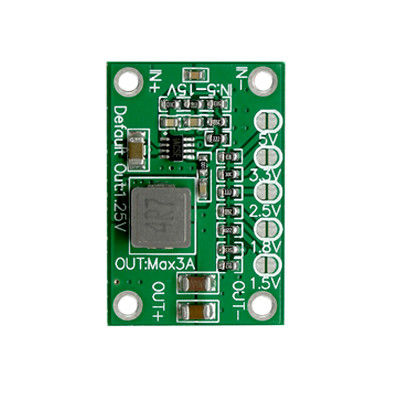

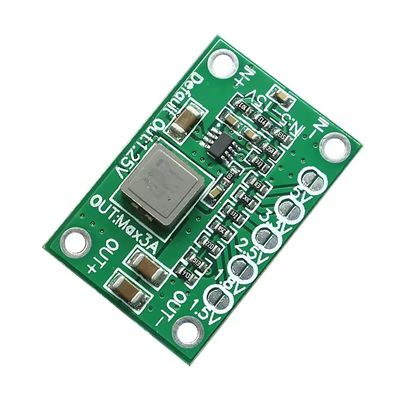

This adjustable module uses the United States imported MP1495 chip, synchronous rectifier output,The power efficiency is up to 90% or more, similar non-linear power supply comparable to the market.5-16V voltage input, 1.25V 1.5V 1.8V 2.5V 3.3V 5V output, 3A current output, short-circuit point to adjust the output voltage (to avoid the appearance of the same potentiometer adjustable voltage appears not allowed to phenomenon), the default output voltage1.25V.Suitable for a variety of small-signal LCD TV power supply maintenance replacement, three lines get power maintenance.
Model: CA- 1235
Type: LCM LCD module
Product size: 30*20*15 (mm)
input :5-15v
output :1.25v 1.5v 1.8v 2.5v 3.3v 5v
