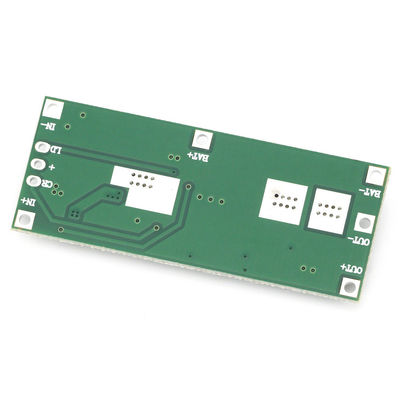

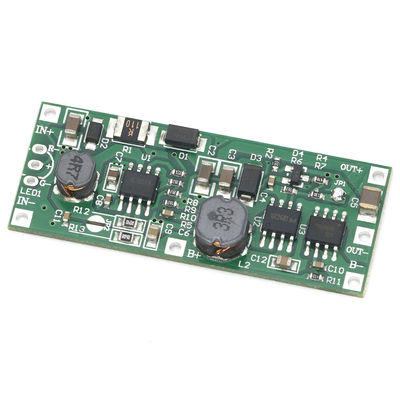

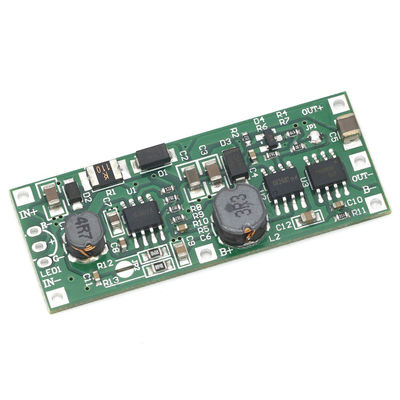

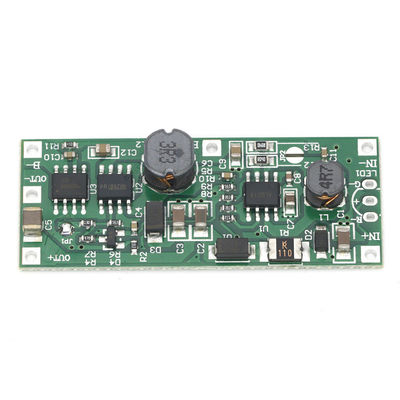

DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection

DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection
DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection

Large Image :  DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: DC 5V 9V 12V Charging board
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.90 - $1.50/pieces
Contact Now

DC 5V 9V 12V Charging Step Up Booster Module for 18650 Lithium Battery UPS Voltage Converter Protection

Description
Type: Li-ion Lithium Battery Board Supplier Type: Charger PCB Protection Board
Copper Thickness: 1 Oz
Highlight:

18650 Lithium Battery Booster Module

,

18650 Lithium Battery UPS Voltage Converter

Recommend Products
Products Description

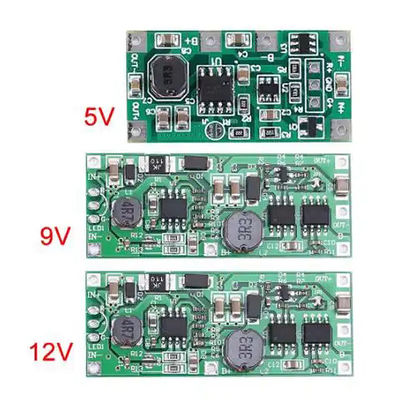

5V:

Introduction:
It is a UPS uninterruptible power supply control board.

Features:
1>.Support charging and discharging at the same time
2>.Large current
3>.Small size
4>.High efficiency
5>.Support short circuit protection

Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5V 1A
3>.Output Voltage:DC 5V 1A
4>.Output Power:5W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 10Ah(Max)
6>.Input reverse connection protection:Yes
7>.Input overvoltage protection:Yes
8>.Output reverse connection protection:Yes
9>.Output short circuit protection:Yes
10>.Working Temperature range:-40℃~85℃
11>.Working Humidity range:0%-95%RH
12>.Size:33*17*4mm

Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common cathode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load
at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
6>.JP1 is to change the output voltage (short circuit is 12V output, disconnected is 9V output).
7>.JP2 is to change the charging current for the battery (short circuit is about 1A, disconnection is about 0.5A).

9V:
Introduction:
It is a UPS uninterruptible power supply control board.

Features:
1>.Support charging and discharging at the same time
2>.Large current
3>.Small size
4>.High efficiency
5>.Support short circuit protection

Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5.0V-12.0V
3>.Output Voltage:DC 9.0V
4>.Output Power:9W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
6>.Working Temperature range:-40℃~85℃
7>.Working Humidity range:0%-95%RH

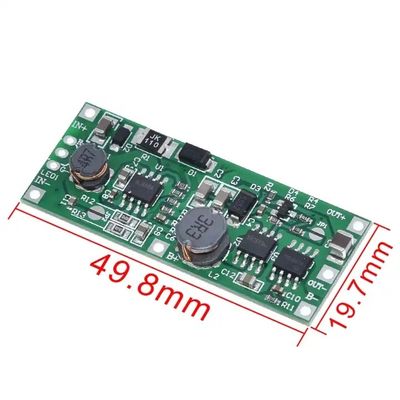

8>.Size:50*20*6.3mm

Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common anode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load
at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
6>.JP1 is to change the output voltage (short circuit is 12V output, disconnected is 9V output).
7>.JP2 is to change the charging current for the battery (short circuit is about 1A, disconnection is about 0.5A).

12V:

Introduction:
It is a UPS uninterruptible power supply control board.

Features:
1>.Support charging and discharging at the same time
2>.Large current
3>.Small size
4>.High efficiency
5>.Support short circuit protection

Parameters:
1>.Product Name:UPS Voltage Converter Module
2>.Working Voltage:DC 5.0V-12.0V
3>.Output Voltage:DC 12.0V
4>.Output Power:12W
5>.Support Battery(No include!):3.7V Lithium or polymer battery 15Ah(Max)
6>.Working Temperature range:-40℃~85℃
7>.Working Humidity range:0%-95%RH
8>.Size:50*20*6.3mm

Note:
1>.Its max output current is 1A and can not keep output 1A.
2>.The positive and negative poles of the input power supply cannot be reversed Otherwise the module will be damaged.
3>.Users can install a common anode Red-Blue LED by yourself as charging indicators.Blue light indicates whether there is a load
at output.Keep Red is charging.There is no battery if Red flashing.Red OFF if charged.
4>.Due to the large current, it is recommended to use a thicker wire.Wire cross-section greater than 1.5 square millimeters.
5>.Please read use manual and description before use.
6>.JP1 is to change the output voltage (short circuit is 12V output, disconnected is 9V output).
7>.JP2 is to change the charging current for the battery (short circuit is about 1A, disconnection is about 0.5A).
