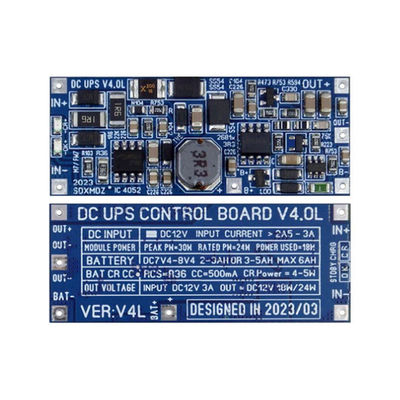

Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output

Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output
Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output

Large Image :  Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: 24W DC UPS
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $2.85/pieces 10-99 pieces
Contact Now

Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output

Description
Highlight:

15V DC UPS Power Supply Module

,

12V DC UPS Power Supply Module

Contact Us
Versatile 24W DC UPS Power Supply Module for Network Devices Supports 12V/15V Output 0
Products Description

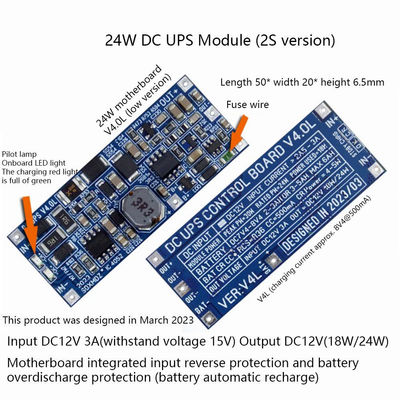

About the standby current: IN interface standby current 1.5-2.5mA (no load or battery full current), BAT battery interface standby current is 0.3-0.4mA, generally not more than 0.5mA at room temperature About the input voltage: The input range of the 12V version is 11.5V-12.5V, and the withstand voltage is 15V. When it is lower than 11.5V, it turns to battery power. When the power mode supplies power to the load, the path loss is 0.4-0.6V About power: The peak power of this product is 30W (when the battery is fully charged, the test is only allowed to test for 3-5 seconds), the rated power is 24W (when the battery is more than 50%, the test is allowed to test for a few minutes when the battery is fully charged), the valley power is 18W (when the battery is about to run out, the power is allowed to be used for a long time), Because the battery cannot be kept fully charged during use, so the user can only use the valley power, that is, no matter how much is written on the label of your load device, but the actual power can not exceed 18W, otherwise there is the risk of overheating and restarting, as for 24W power, only a few minutes or tens of minutes can be used when the battery is fully charged, but this power can not be used for a long time! Unless you hang an additional temperature control fan to cool the motherboard, good heat dissipation can be long-term continuous load 24W power! ;
Other questions can consult the owner! About the input current: For non-professional users, the input current must be greater than 12V 3A, it is recommended that 4-5A current is better, leave some margin, you can reduce the temperature of the external power supply, for professional users, do not need to pay attention to this parameter, as long as the external power supply is greater than the charging + load on the line, such as the load is 0.5A, charging is 0.5A, External power supply 12V 1.5A is enough!
Beginners do not understand this so must refer to the use of regulations, otherwise will encounter a variety of troublesome
problems! Master remind: this motherboard is linear intermittent temperature control charging, allowing parallel to improve the charging power, so two motherboards can be used in parallel, but can only improve the charging power, can not improve the discharge power, because the time is not synchronized, so the discharge power can not be improved, but the motherboard in parallel
when the external power supply mode output power can be increased by nearly double! But not very practical, not very meaningful!
