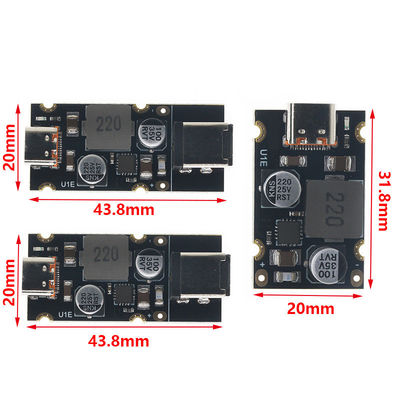

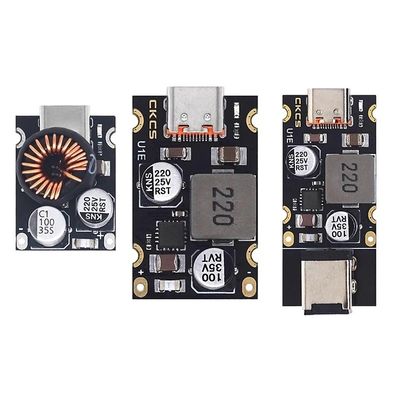

QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type

QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type

Large Image :  QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: QC4.0 QC3.0
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $1.25 - $2.20/pieces
Contact Now

QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type

Description
Mounting Type: Standard Description: Fast Charging Adapter Module
Highlight:

QC4.0 Fast Charging Adapter Module

,

Type-C Fast Charging Adapter Module

,

QC3.0 Fast Charging Adapter Module

QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 0
Products Description

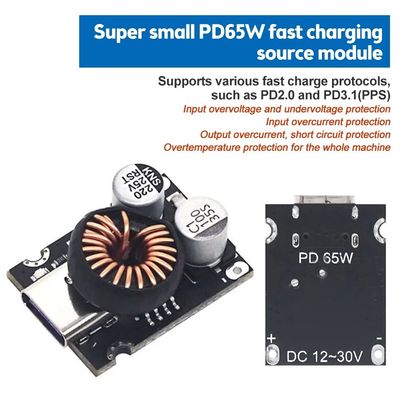

Product features: 1. Input overvoltage and undervoltage protection Input overcurrent protection 2. Output overcurrent and short circuit protection, complete machine over temperature protection 3. Support PD3.1 (PPS) 65W fast charging module 4. Support PD2.0/PD3.1 (PPS) output protocol 5. Supports Qualcomm QC2.0 and QC3.0 Product parameters: Input voltage: DC 12-30V Output voltage: Automatically adjust between 3.3v and 21v when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, if triggering a 20V fast charging, input voltage should be higher than 20V) Output power: maximum 65W (5V/3A, 9V/3A, 12V/3A, 20V/3.25A, etc.) Conversion efficiency: 92%~97% Output voltage ripple:<300mV No-load current:<2mA Input overvoltage and undervoltage protection Input overcurrent protection Output overcurrent and short circuit protection, overall over temperature protection Fast charging module supporting PD3.1 (PPS) 65W Supported charging protocols BC1.2, Apple Protocol For Qualcomm QC2.0 and QC3.0 For Huawei Fast Charging Protocol FCP and SCP For Samsung Fast Charging Protocol AFC ForMTK PE+1.1 and MTK PE+2.0 ForPD2.0/PD3.1 (PPS) Output Protocol
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 1
Product Features Input voltage: DC8~32V Output voltage: automatically adjusts between 3.3V~21V when connected to TYPE-C compatible powered devices (input voltage should be higher than output voltage, if you want to trigger 20V fast charging then input voltage should be higher than 20V) Output power: 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.) Conversion efficiency: 92%~97% Output voltage ripple: <200mV No-load current: <3mA Input overvoltage, undervoltage protection Input overcurrent protection Output over-current, short-circuit protection Whole machine over-temperature protection Supported charging protocols BC1.2, Apple protocol Qualcomm QC2.0 and QC3.0 Huawei Fast Charging Protocol FCP and SCP Samsung Fast Charging Protocol AFC MTK PE+1.1 and MTK PE+2.0 PD2.0/PD3.1 (PPS) output protocols
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 2
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 3
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 4
Certificates & Production Processes
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 5
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 6
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 7
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 8
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 9
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 10
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 11
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
QC4.0 QC3.0 Type-C USB PD65W Fast Charging Adapter Module with Standard Mounting Type 12
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
