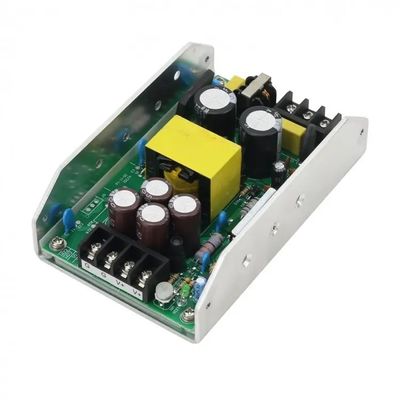

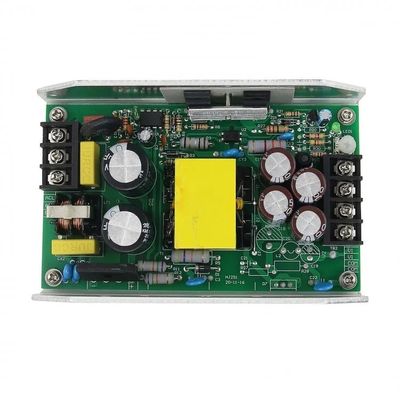

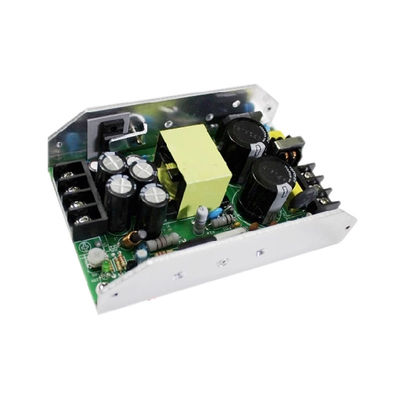

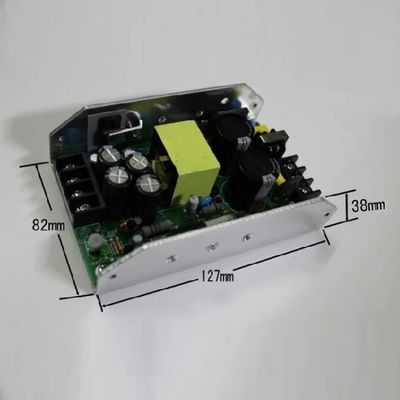

350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A

350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A

Large Image :  350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: 350W Switching Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: 5 pieces
Price: $11.60 - $13.20/pieces
Contact Now

350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A

Description
Input Voltage: 220v Output Voltage: 24V/14.5A 36V/9.5A 48V/7.3A
Highlight:

220v Switching Power Supply

,

350W Switching Power Supply

Products Description
Optional output voltage: Type 1: 24V 14.5A Type 2: 27V 12.5A Type 3: 35V 11A Type 4: 36V 9.5A Type 5: 42V 8.3A Type 6: 48V 7.3A
Type 7: 54V 6.5A
Type 8: 60V 5.9A

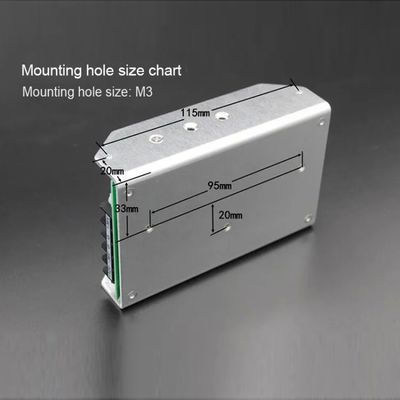

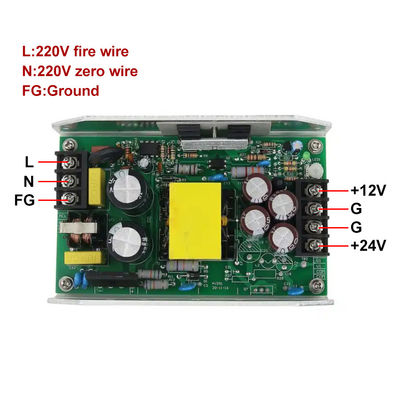

Attention: The power supply is designed with a single positive voltage instead of positive and negative voltage. Features: - Input Terminals: L and N are respectively connected to live and null wires of 220V plug. FG can be connected to a shell or earth wire. - Pure aluminum heat sink and shell. There are three M3 fixing holes in the middle of the bottom, which can be fixed on a chassis or on a larger heat sink. - There are also two M3 fixing holes on two sides, and a heat sink can also be installed or fixed on the sides. - This power supply is specially designed for power amplifier circuit. Pure aluminum shell is for heat dissipation and shielding. Ripple interference is very small. Package Included: - 1 x Switching Power Supply Note: - Input and output power cords are not included, please purchase separately. - The upper part of the power supply is exposed. In order to prevent electric shock, please install it in an amplifier case for use. -Ouput voltage¤t optional: 24V/14.5A 36V/9.5A 48V/7.3A, please tell us the one you prefer when you purchased.
Contact us
Wechat：
alvacheng88
Mobile：
+86-13689587416
Skype：
alvacheng1
E-mail：
leo@creatall.com
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 0
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 1
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 2
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 3
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 4
Company Profile
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 5
Certificates & Production Processes
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 6
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 7
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 8
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 9
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 10
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 11
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 12
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 13
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 14
Contact Us
350W 220v Switching Power Supply for Digital Power Amp 24V/14.5A 36V/9.5A 48V/7.3A 15
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
