Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board

Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board

Large Image :  Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: CA-1005
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $33.95/pieces 10-99 pieces
Contact Now

Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board

Description
Private Mold: NO Type: Professional Amplifier
Channels: 2 (2.0)
Highlight:

HIFI Amplifier Board

,

500W Amplifier Board

Contact Us
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 0
Products Description

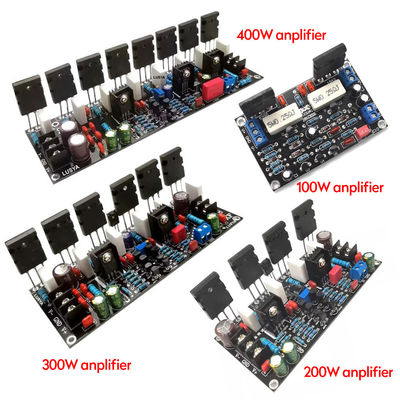

100W rear mono amplifier board 2SC5200+2SA1943

Features. 1.The noise of the switch is very small and will not affect the speakers too much. It is recommended to add speaker protection circuit. The speaker protection circuit can not only eliminate the impact noise of the power amplifier switching off, but also prevent the output DC from burning the speakers when the power amplifier is damaged. 2. Small bottom noise. Zero float small, do not need to do any debugging after installation, the output zero drift voltage is generally not more than 50mV, and more stable. 3. Free debugging. As long as the connection is correct, no one is wrong, basically it is successful, do not need to do any debugging, beginners also have a high success rate.
Attention. 1.2SC5200 + ZSA1943 are disassembled parts but in good condition. 2.PCB has been changed to black, but same function. 2SC5200 + ZSA1943 are disassembled parts but in good condition Operating voltage: recommended double DC10-45V double DC35V Rated output power: 100W (4 ohms) 35V) Maximum output power: 150W (4 ohms) earth 45V) huge heat, do not recommend the use of Printed circuit board size: 30x50x35mm Pitch:5.08mm Hole spacing between two power tubes:47mm Translated with DeepL.com (free version)
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 1
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 2
Mono 200W high power 1943+5200 amplifier board

Board for mono rear amplifier board, need to buy 2 pieces of dual-channel, circuit design using. A970/C2240 high-voltage audio tube double differential circuit and A1145/C2705 for voltage amplification to promote the use of medium-power tube A1837/C4793 output stage using A1943/C5200 high-power Toshiba tube. Wide range of power supply, DC plus or minus 20V-90V can be as long as enough power to easily reach 200 sound quality, propulsion board strong, push 15-inch speakers, no pressure! Amplifier board size: 120 * 60 * 45MM Power: undistorted power 200W high power 300W Power supply: dual-voltage DC positive and negative 20-90V (upgraded version of the circuit has been optimised and parts, you can directly on the high voltage, it is recommended that the use of 90V or less, do not challenge the voltage limit.) Translated with DeepL.com (free version)
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 3
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 4
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 5
Mono 300W amplifier board 1943+5200 Rear amplifier board with speaker protection

Features. Upgraded mono amplifier board 1943+5200 high power Toshiba triode rear amplifier board The board is a single channel rear amplifier board that requires dual channels. Buy 2 boards, circuit design with A970/C2240 high-voltage audio double differential circuit, A1145/C2705 do voltage amplification, promote the use of medium-power triode A1837/C4793, the output stage high power.
Toshiba tube with A1943/C5200. wide range of power supply, DC plus or minus 20V-90V can be used, as long as the power supply is sufficient to easily reach 300W. good sound quality, driving force is extremely strong, drive 15-inch speakers without pressure! Size: 150x75x55mm Power: undistorted power 300W, peak power 450W. Power supply: dual voltage, DC plus or minus 20-90V (upgraded version of the optimised circuitry and parts, you can directly apply high voltage, it is recommended to use the voltage below 90V, do not challenge the voltage limit!
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 6
Upgraded 300W 5200+1943 20V-90V Mono HIFI High Power Audio Amplifier

Report Item Upgraded version of single channel amplifier board 1943+5200 high-power Toshiba transistor rear stage amplifier board. The board is a single channel rear amplifier board that requires dual channels. please buy 2 pieces, The circuit design uses the A970/C2240 high voltage audio pair dual differential circuit and A1145/C2705 for voltage amplification, promoting the use of medium power pair A1837/C4793, and the output stage uses A1943/C5200 high-power Toshiba pair. Wide power supply range, DC positive and negative 20V-90V can be used, as long as sufficient power is supplied, it can easily reach 300W. Good sound quality, extremely powerful driving force, driving 15 inch speakers without any pressure! Amplifier board size: 145X60X45 MM length * width * height Real power: undistorted power 300W, maximum power 450W.. Power supply: dual voltage, DC positive and negative 20-90V (upgraded version has optimized the circuit and parts, can To directly apply high voltage, it is recommended to use a voltage below 90V and not challenge the voltage limit

Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 7
Upgraded mono 400W tube 5200+1943 20V-90V HIFI high power audio amplifier

Report Item Upgraded version of single channel amplifier board 1943+5200 high-power Toshiba transistor rear stage amplifier board. The board is a single channel rear amplifier board that requires dual channels. please buy 2 pieces, The circuit design uses the A970/C2240 high voltage audio pair dual differential circuit and A1145/C2705 for voltage amplification, promoting the use of medium power pair A1837/C4793, and the output stage uses A1943/C5200 high-power Toshiba pair. Wide power supply range, DC positive and negative 20V-90V can be used, as long as sufficient power is supplied, it can easily reach 300W. Good sound quality, extremely powerful driving force, driving 15 inch speakers without any pressure! Amplifier board size: 195X60X45 MM length * width * height Real power: undistorted power 400W, maximum power 600W.. Power supply: dual voltage, DC positive and negative 20-90V (upgraded version has optimized the circuit and parts, can To directly apply high voltage, it is recommended to use a voltage below 90V and not challenge the voltage limit

Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 8
Upgraded mono 500W tube 5200+1943 dual voltage 20V-90V HIFI high power audio

Report Item Upgraded version of single channel amplifier board 1943+5200 high-power Toshiba transistor rear stage amplifier board. The board is a single channel rear amplifier board that requires dual channels. please buy 2 pieces, The circuit design uses the A970/C2240 high voltage audio pair dual differential circuit and A1145/C2705 for voltage amplification, promoting the use of medium power pair A1837/C4793, and the output stage uses A1943/C5200 high-power Toshiba pair. Wide power supply range, DC positive and negative 20V-90V can be used, as long as sufficient power is supplied, it can easily reach 300W. Good sound quality, extremely powerful driving force, driving 15 inch speakers without any pressure Amplifier board size: 245X60X45 MM length * width * height Real power: undistorted power 500W, maximum power 750W.. Power supply: dual voltage, DC positive and negative 20-90V (upgraded version has optimized the circuit and parts, can To directly apply high voltage, it is recommended to use a voltage below 90V and not challenge the voltage limit Package Included: 1pcs  500w  audio amplifier board with speaker protect relay

Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 9
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 10
Certificates & Production Processes
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 11
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 12
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 13
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 14
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 15
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 16
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 17
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 18
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Private Mold NO 500W HIFI High Power Audio Amplifier Mono Rear Amplifier Board 19
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
