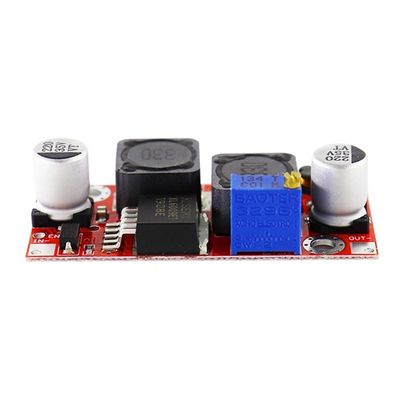

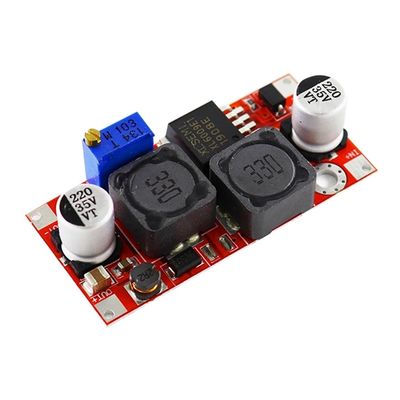

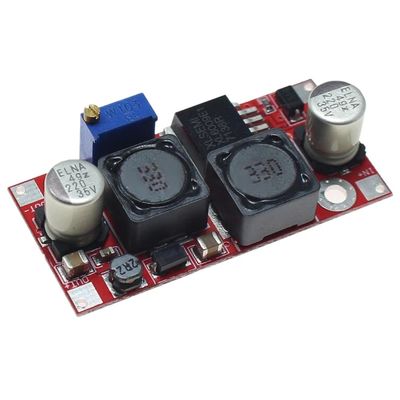

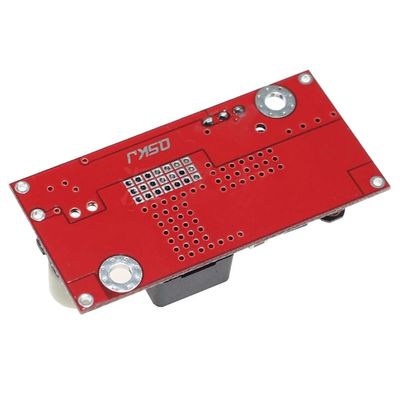

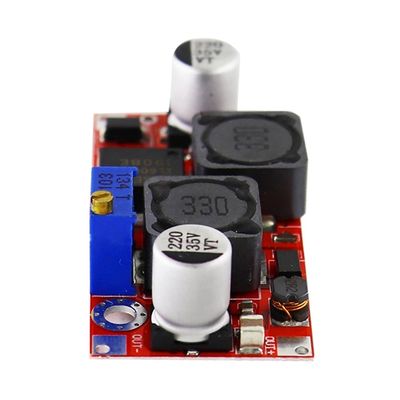

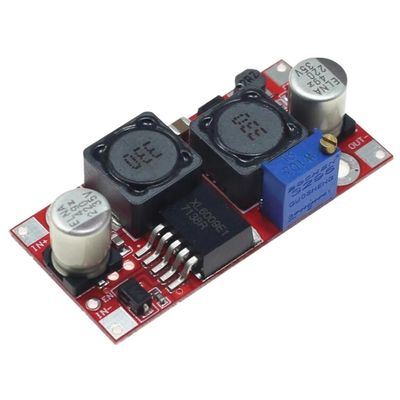

Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter

Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter
Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter

Large Image :  Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall, DC-DC Power Module
Model Number: CA-6009D
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: $0.85/pieces 50-499 pieces
Contact Now

Adjustable 20W 5-32V to 1.2-35V DC-DC Boost Buck Converter Inverter

Description
Customized Support: Software Reengineering Type: DC/DC Converters
Output Type: DUAL, Multiple Output Current: Standard
Output Frequency: Standard Weight: 43g, 43G
Warranty: 1 Year Shipping By: DHL\UPS\Fedex\EMS\China Post\HongKong Post
PAYMENT: Paypal\TT\Western Union\Trade Assurance Condition: 100% Original
Highlight:

Adjustable DC-DC Boost Buck Converter

,

20W DC-DC Boost Buck Converter

,

35V DC-DC Boost Buck Converter

Products Description
XL6019 XL6009 Adjustable Boost Buck Module DC-DC Power Supply Step Up Down Voltage Converter Regulator 5V-32V To 1.2V-35V

Description:
Auto start voltage will be pulled down to 7V less or smaller engine at high speed when the voltage up to 15V or higher. For 12V electrical work hard at work, this automatic buck module solves this problem , regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.

Wide input voltage 5V ~ 32V;Wide Output Voltage 1.25V ~ 35V ( with automatic buck , scope of work, any voltage inputs can be arbitrarily regulated voltage output );Built- 4A efficient MOSFET switches enable efficiency up to 94%;(LM2577 current is 3A)high switching frequency of 400KHz, the ripple is smaller and smaller . (LM2577 frequency only 50KHz)

Application:
Car regulator , solar photovoltaic, wind power and other applications of voltage instability .

Technical parameters:
Model Specification:DSN6000AUD Automatic Buck module
Module Properties:Non- isolated boost (BOOST)
Rectification:Non- Synchronous Rectification
Input Range:3.8V ~ 32V
Output Range:1.25V ~ 35V
Input Current:3A ( max ) , no-load 18mA (5V input , 8V output , no-load is less than 18mA. Higher the voltage , the greater the load current . )
Conversion efficiency:< 94% ( greater the pressure , the lower the efficiency )
Switching frequency:400KHz
Output Ripple:50mV ( the higher the voltage , the greater the current , the greater the ripple )
Load Regulation:± 0.5%
Voltage Regulation:± 0.5%
Operating Temperature:-40 ° ~ +85 °

Package Included:
1 x Boost Buck DC-DC adjustable step up down Converter XL6009 Module Solar Voltage
