12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard

12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard

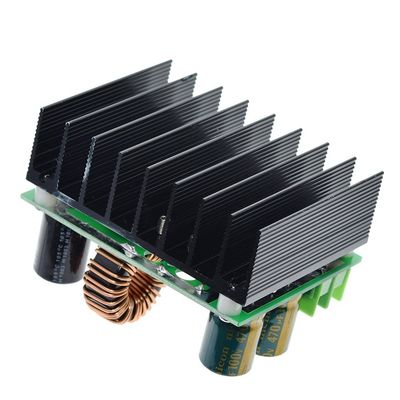

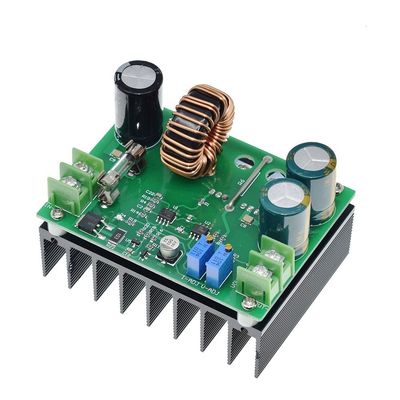

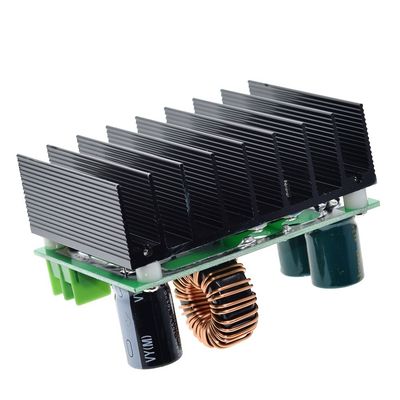

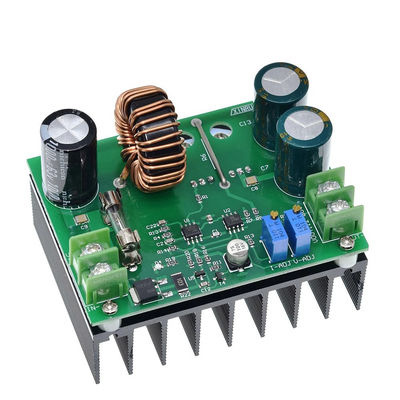

Large Image :  12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: CA-600W
Payment & Shipping Terms:
Minimum Order Quantity: 10 pieces
Price: $4.80/pieces 10-99 pieces
Contact Now

12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard

Description
Network: Standard Customized Support: Software Reengineering
Type: DC/DC Converters Output Type: Standard
Output Current: 10A, 10A Max Output Frequency: Standard
Size: 85*63*64mm Weight: 251g
Product Name: Constant Current Board Module Properties: Step-up / Boost DC-DC Converter
Input Current: 15 A Max The Minimum Voltage Difference: 2V
Output Power: Input 12V Max 120W, In 24V Max 240W, In 60V Max 600W Efficiency: 95% Max
Colour: Green
Highlight:

10A DC-DC Boost Converter Board

,

12-80V DC-DC Boost Converter Board

,

600W DC-DC Boost Converter Board

Products Description
Contact us
Wechat：
alvacheng88
Mobile：
+86-13689587416
Skype：
alvacheng1
E-mail：
leo@creatall.com


Specification:
Module Properties: Step-up / Boost DC-DC Converter
Input Voltage:DC 10 ~ 60 V
Output Voltage:DC 12 ~ 80 V ( adjustable, O/p Voltage more than the I/p Voltage by 2V )
Output Current:10A Max
Input Current: 15 A Max( Under normal circumstances please 12A Current )
The minimum voltage difference:2V
Output Power: input 12V Max 120W, in 24V Max 240W, in 60V Max 600W ( P=U x I )
Efficiency:95% Max( eg input :30V output: 40V 5A n: 93%)
Output Short-circuit Protection:yes
Input Reverse Protection: None

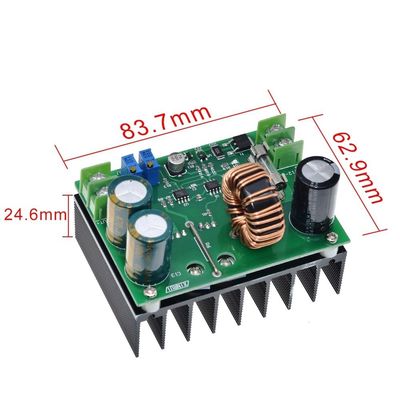

Size:85 x63 x64mm (L x W x H )
Weight:251g
Material:CCL
Colour:Green
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 0
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 1
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 2
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 3
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 4
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 5
Company Profile
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 6
Certificates & Production Processes
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 7
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 8
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 9
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 10
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 11
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 12
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 13
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 14
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 15
Contact Us
12-60V to 12-80V DC-DC Boost Converter Board with 600W 10A Output Frequency standard 16
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
