Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module

Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module
Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module

Large Image :  Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: SX1308
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.25/pieces 100-999 pieces
Contact Now

Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module

Description
Mounting Type: Standard Description: Dc-dc Converter Board
Lead Time: 1-3 Days Warranty: 3 Month
MOQ: Sample Package: An-ti Plastic Bag
Payment: Trade Assurance Place Of Original: China
Type: Integrated Circuit
Highlight:

DC-DC SX1308 Power Supply Module

,

Adjustable Boost Converter Power Supply Module

,

Step-UP Adjustable Boost Converter Module

Contact Us
Integrated Circuit DC-DC SX1308 Step-UP Adjustable Boost Converter Power Supply Module 0
Products Description
Description:

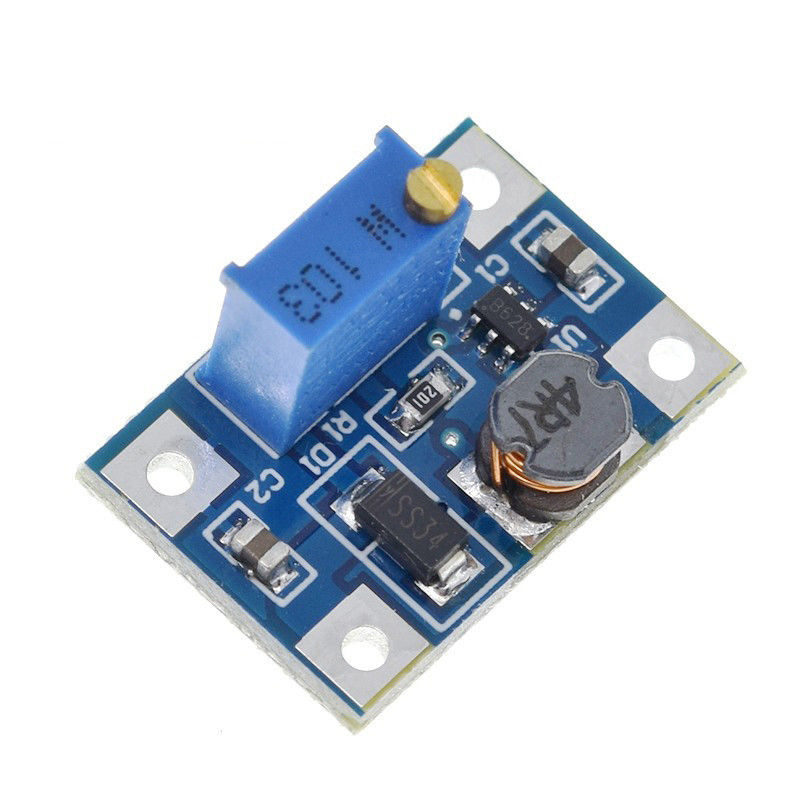

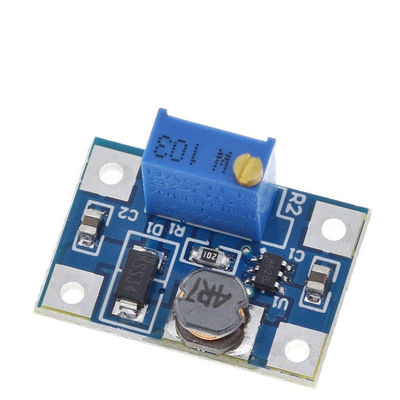

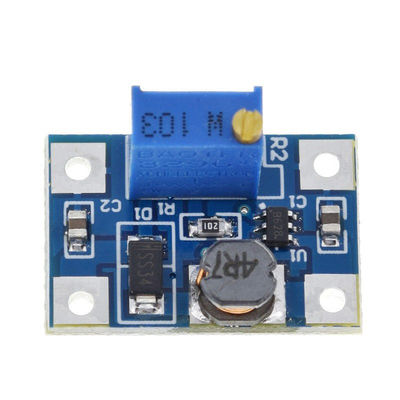

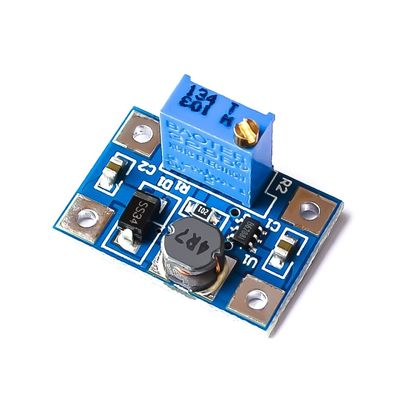

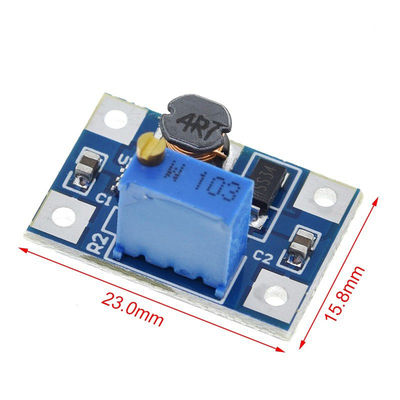

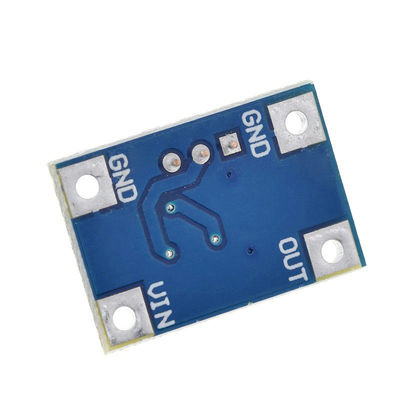

SX1308 booster module carrying SX1308 chip, its packagnig is small, and high efficiency. The output power can be adjust, maximum can arrive 28V and its interior integrate the lowest RDS internal resistance 100mΩ metal oxide semiconductor field effect transistor (mosfet), which can realize large current output of up to 2A. It widely used in 3G network products, digital products,mobile power supply,battery power supply, equipment, etc.

Features:
Oscillation frequency 1.2MHz
efficiency is as high as 95%
Circuit has short circuit protection, overheating protection function
10k to adjust potentiometer, adjust the output voltage

Parameters:
Maximum input voltage: DC 2-24V
Maximum output voltage: DC 2-28V
Switching frequency: 1.2MHz
Maximum current output: 2A
