Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm

Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm

Large Image :  Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm

Product Details:
Place of Origin: Guangdong, China
Brand Name: Creatall
Model Number: XL4015E
Payment & Shipping Terms:
Price: $2.85/pieces 1-79 pieces
Contact Now

Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm

Description
Mounting Type: Standard Description: DC-DC Step Down Power Module
Size: 66*39*18mm
Highlight:

Voltage Display Buck Module

,

75W Buck Module

,

5A Buck Module

Contact Us
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 0
Products Description

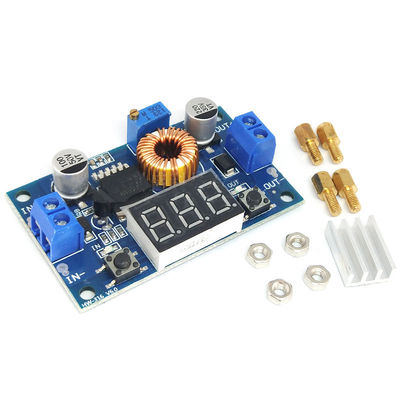

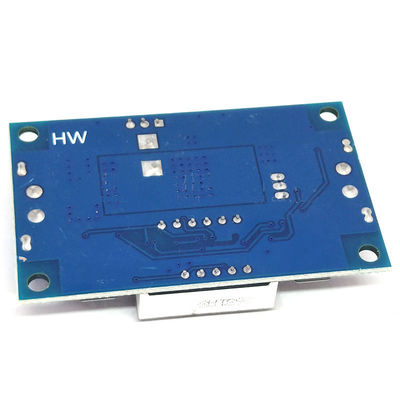

XL4015E adjustable Buck module 5A high power 75W with voltage display DC-DC step-down power supply module

Module performance and features:

With power indicator
1. with a voltmeter display and the voltmeter can be self-calibration. Using a more advanced voltage microprocessor, voltmeter error ± 0.05V, range 0 ~ 40V. (Note: To ensure the accuracy of the voltmeter, please ensure that the input voltage above 4.5V)
2.Touch the button to switch the measurement input or output voltage, and the indicator shows which circuit voltage is being meas ured, and save the settings, even if the power is turned on again.
3. The voltmeter can be turned off, when you do not need to touch the left button can be easily achieved.
4. With terminal blocks, no soldering iron can also be used easily, and retain the wire connection point.
5. Input voltage 4.0 ~ 38V. (The input voltage must be higher than the output voltage 1.5v above)
Adjustable

output voltage range 1.25V ~ 36V continuously adjustable. (The input voltage must be 1.5V higher than the output voltage)
6. Output current up to 5A, it is recommended to use within 4.5A.
7. Output power up to 75W, more than 50W Please strengthen the chip cooling. (That is, must add a small radiator) high conversion efficiency, up to 96% (efficiency and input, output voltage, current, pressure related)
8. Operating frequency: 180KHZ
9. Load regulation rate S (I) ≤ 0.8%, voltage regulation rate S (u) ≤ 0.8%
10. with overheating protection and short circuit protection (but the short circuit in case of accident, try not to short circuit)
11. Board size: 6.64 * 3.89CM
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 1
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 2
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 3
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 4
Certificates & Production Processes
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 5
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 6
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 7
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 8
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 9
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 10
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 11
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 12
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 13
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Standard Mounting Type XL4015E Buck Module 5A 75W with Voltage Display 66*39*18mm 14
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
