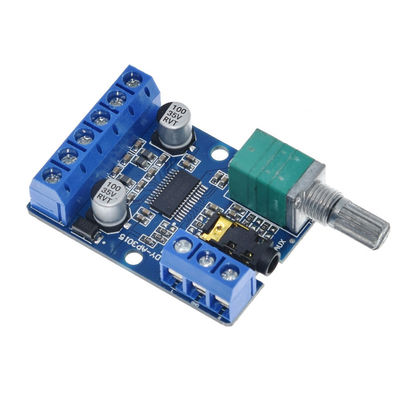

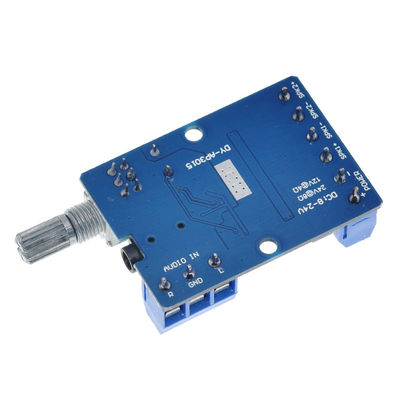

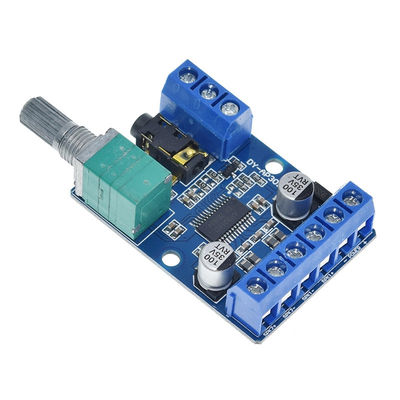

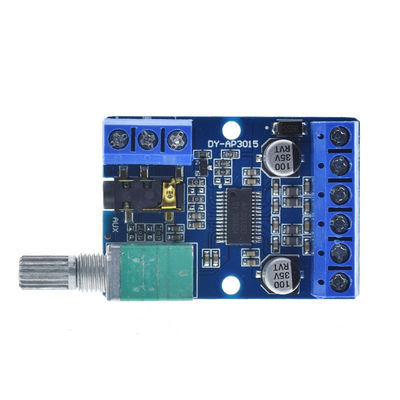

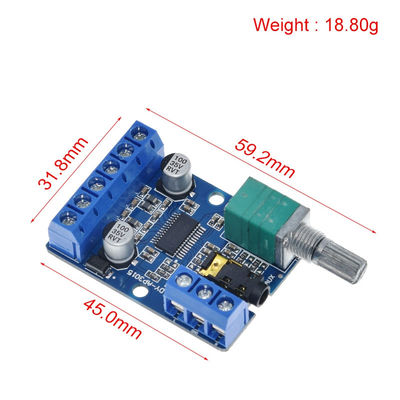

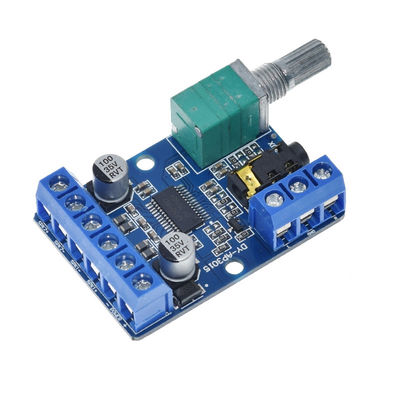

30Wx2 power Stereo Digital Amplifier Board 12V/24V Power Supply DIY DY-AP3015 Audio Board

Large Image : 30Wx2 power Stereo Digital Amplifier Board 12V/24V Power Supply DIY DY-AP3015 Audio Board

Product Details:

Place of Origin:	China
Brand Name:	CreatAll
Model Number:	CA-3015

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$1.80/pieces 100-999 pieces

Contact Now

30Wx2 power Stereo Digital Amplifier Board 12V/24V Power Supply DIY DY-AP3015 Audio Board

Description

Private Mold:	NO	Type:	Professional Amplifier
Channels:	2 (2.0)	Product Name:	Digital Amplifier Board
Color:	Blue	Channel:	2.0 Channel
MOQ:	100 Pcs
Highlight:	DIY DY-AP3015 Amplifier Board , 12V Power Supply Amplifier Board , 24V Power Supply Amplifier Board

Specification

30Wx2 High power stereo digital power amplifier board 12V/24V power supply DIY power amplifier module DY-AP3015

Notes on use:

1. The recommended power supply voltage is DC 8~24V. If it exceeds 26V, the chip will burn out, and if it is lower than 8V, there will be noise.

2. When connected to a 4Ω speaker, the power supply does not exceed 12V, and when connected to an 8Ω speaker, the power supply does not exceed 24V.

3. The power supply current is recommended to be above 2A.

4. The working power of the module exceeds 20W*2, and a heat sink needs to be added

5. Ensure that the input audio signal is within 0.5V~1.5V

6. The speaker cable should not be too long, and it should be within 1 meter.

7. Pay attention to static electricity protection. Before touching the power amplifier board, you need to release the static electricity on your hands to avoid static electricity from breaking down the power amplifier chip. Digital power amplifiers are more sensitive to static electricity.

8. It is recommended to use speakers with a rated power of 30W and above to avoid heating and burning the speakers

Product Name	30W×2 Stereo Digital Power Amplifier Module
Product model	DY-AP3015
Working voltage	DC: 8~24V
Working mode	Class D (PWM modulation)
Number of channels	Stereo (two channels)
Output power (@1KHz)	18W*2 @12V 4Ω
Output power (@1KHz)	10W*2 @12V 8Ω
		15W*2 @16V 8Ω
		20W*2 @20V 8Ω
		30W*2 @24V 8Ω (need to add heat sink)
Adapted speaker (30W~150W)	4 ohms (8-12V power supply)
Adapted speaker (30W~150W)		8 ohms (8-24V power supply)
Module Protection Mechanism	Module Protection Mechanism
		Short circuit protection
		Self-recovery overheating protection
