Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output

Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output

Large Image :  Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: CA-3116
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $1.30/pieces 100-999 pieces
Contact Now

Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output

Description
Packaging Type: Bag Function: Amplifier Audio Board
Application: TPA3116D2 Amplifier Audio Board Type: TPA3116D2 Amplifier Audio Board, Audio Amplifiers
Package / Case: Standard Voltage - Supply: Standard
Series: TPA3116D2 Amplifier Audio Board Description: TPA3116D2 Amplifier Audio Board
Manufacturer: Creatall Work Voltage: DC 5-24V
Quiescent Current: 28mA Chip Type: TDA3116D2
Work Frequency: 20Hz~20KHz
Highlight:

100W Audio Amplifier Board

,

Digital Power Audio Amplifier Board

,

TPA3116D2 Audio Amplifier Board

Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output 0
Products Description
1.Description:

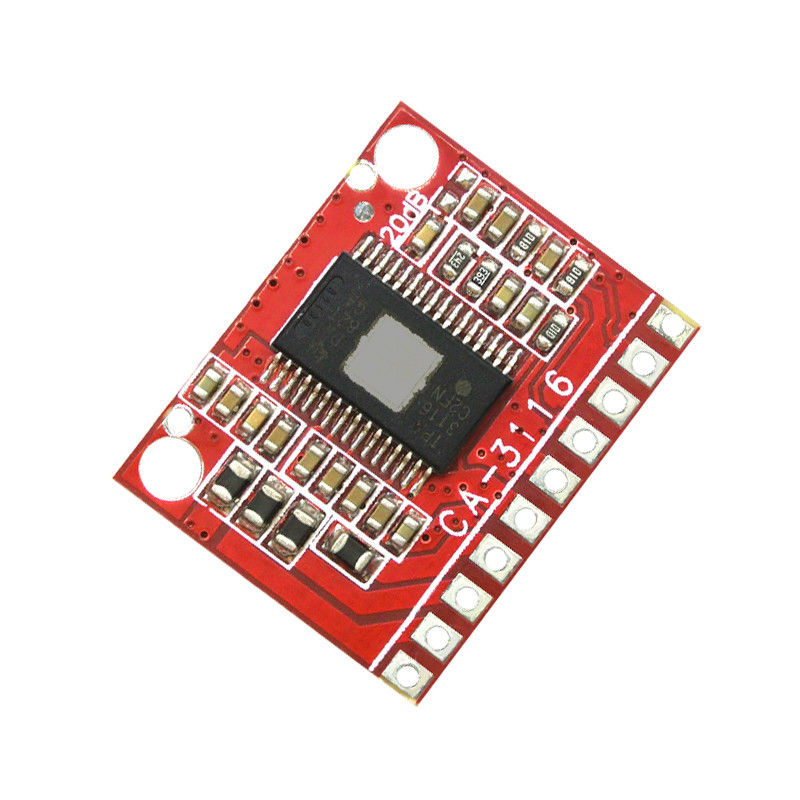

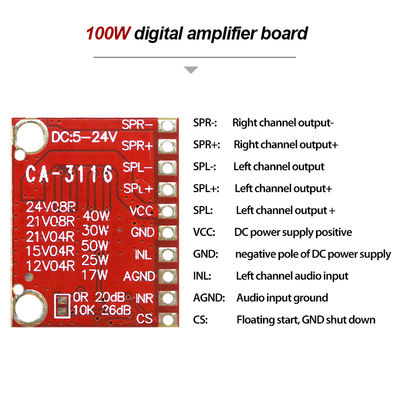

CA-3116 is a 50W*2 Dual Channel Stereo Digital Power Amplifier Board.It has a built-in amplifier module that can be connected directly to the speaker.

2.Features:
1>.Ultra small volume
2>.No POP noise
3>.Low power consumption
4>.High gain
5>.Support output short circuit protection

3.Parameters:
1>.Item name: 50W*2 Dual Channel Stereo Digital Power Amplifier
2>.Model:CA-3116
3>.Work voltage:DC 4.5V~24V
4>.Quiescent Current:28mA
5>.Chip type:TDA3116D2
6>.Work frequency:20Hz~20KHz
7>.Work type: Class D(PWM modulation)
8>.Input resistance:1Kohm
9>.Output resistance:4~8ohm
10>.Gain:36dB
11>.Noise ratio:102dB
12>.Harmonic distortion:<1%
13>.Operating Temperature:-20℃~85℃
14>.Operating Humidity:5%~95%RH
15>.Module Size:25*20*2mm
16》Module weight: 1.6g

4.Package:
1>.1pc 50W*2 Dual Channel Stereo Digital Power Amplifier
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output 1
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output 2
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output 3
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output 4
Digital Power Linear Amplifier TPA3116D2 Series Audio Amplifier Board for 100W Output 5
