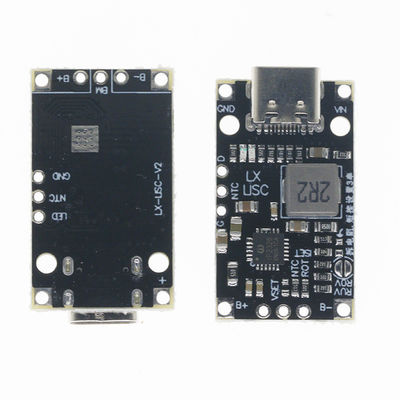

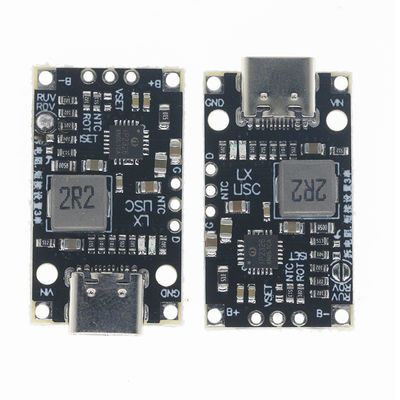

Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator

Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator

Large Image :  Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator

Product Details:
Place of Origin: Guangdong, China
Brand Name: creatall
Model Number: Type-C USB 2/3S
Payment & Shipping Terms:
Minimum Order Quantity: 50 pieces
Price: CN¥10.97/pieces 50-199 pieces
Contact Now

Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator

Description
Base Material: Pcb
Highlight:

8.4V Lithium Battery Charging Boost Module

,

15W Lithium Battery Charging Boost Module

,

1.5A Lithium Battery Charging Boost Module

Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 0
Products Description
Charging board of 2/3 series lithium battery pack with equalization function Support QC fast charging
15W synchronous switch boost charging boost Charging efficiency 94%
2 or 3 series lithium battery charging can be set
2 Series band equalizing charging

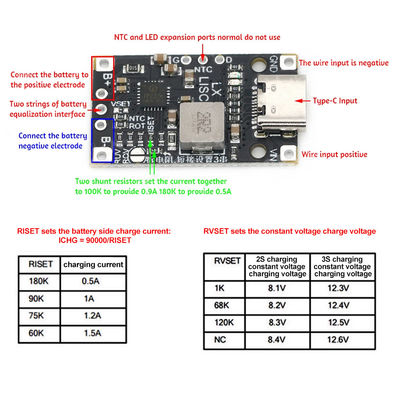

Adjustable charging current Size (about): 3.2 * 1.8 * 0.5cm   LED indicator: The red light is normally on; The blue light is on during charging; The blue light is off after full charging; The blue light flashes when an abnormality is detected.   Product description: The module is applicable to two or three channeled 3.7V lithium batteries. By short circuit setting, the default is two strings. When two strings are used, the module can use its own battery equalization function, which is very practical. The type-c port and welding wire can be used for input. When the type-c port is connected to the fast charging power supply, the charging voltage is automatically adjusted to improve efficiency. If the input voltage is less than the battery voltage when the welding wire is input, the module can only work in the boost state. 1. Input: Type-c port or solder wire input can be selected. Type-c connected to QC fast charge can automatically adjust the charging voltage and improve the charging efficiency. If solder wire input, the input power supply should be less than the battery voltage (number of batteries in series * battery voltage). 2. Output: 2 and 3 strings are supported. The battery needs to be equipped with a protection board. The default is 2 strings. When changing to 3 strings, short circuit the short contact, and then remove the side resistance. The equalization function can be used when two strings of batteries are connected. The BM pin is connected between two strings of batteries (the equalization speed is limited, and the parameters of two strings of batteries should be consistent as far as possible when using). 3. Current setting: The green arrow in the figure above indicates that the default setting current of two parallel current is 100K (0.9A) and 180K (0.5A). The resistor can be removed or replaced as required. The calculation formula is current=90000/resistance value. 4. Set the battery charging cut-off voltage. The default single string voltage is 4.2V, which is the same value for ordinary batteries, and it does not need to be changed. To change, set the board VSET resistance according to the RVSET setting table. 5. Set the charging timeout. By default, there is no timeout. Set the ROT resistance value. 68K-4 hours, 120K-12 hours, no pasting - 24 hours. 6. NTC access: normally not used. If necessary, change the NTC resistance value to 82K, and connect the NTC welding point and the adjacent GND to 100K thermistor (B=4100). Note: Normal use does not require too many modules to be set, just select 2 or 3 strings for charging as required, unless you are special and familiar with the application.   Package Contents: Charging module X1 Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 1
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 2
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 3
Contact us
Wechat：
zq13827494627
WhatsApp：
+86-13827494627
Skype：
alvacheng1
E-mail：
leo@creatall.com
Company Profile
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 4
Certificates & Production Processes
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 5
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 6
Packing & Delivery
1. Normal packaging.
2. Export carton.
3. Custom packing.
4. All orders are will be shipped within 3-25 days after customers confirmed payment.
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 7
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 8
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 9
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 10
Payment&Shipping
PAYMENT Standard payment terms: pay 30% deposit in advance, 70% balance before shipment. Online trade assurance order, all is up to you. More payment terms could be provided! (T/T,PAYPAL WESTERN UNION) SHIPPING After-sales Service: 100% strict inspection and test before shipment. Replace in one weekonce original defective goods found on arrival. Enjoy one year warranty.
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 11
Customer Reviews
This is a part of good feedback from our customer, all is 5 star. It is prove that we are excellent supplier and also prove we own
high quality products and professional services.
Type-C USB 2/3S BMS 15W 8.4V 12.6V 1.5A Lithium Battery Charging Boost Module With Balanced Support Fast Charge With Indicator 12
FAQ
Q: What is the minimum order quantity for your products? A: If you need a small order, please contact us Q: How long is your delivery time? A: The product will be sent within 3 days after payment is confirmed, and the delivery time is 3 to 6 days Q: Do you test or inspect all items before delivery? A: Yes, we tested and checked all items before shipment. Q. What is your warranty? A: 60 days after receiving the goods. Our products are 100% tested before being shipped. If the goods are defective, please notify us within 3 days after delivery. Any item must be returned as is to be eligible for a refund or payment. The buyer is responsible for all freight incurred. Q: How do I pay for the order? A: We accept wire transfer, Western Union, Pay Pal, moneygram, escrow (if you prefer other methods, please contact us)
