Product Details:
|
| Display Type: | Digital Only | Dimensions: | 22* 14 * 7mm |
|---|---|---|---|
| Update Frequency: | About 200ms | Measuring Range: | 4-30V |
| Measuring Accuracy: | 1% | Storage Temperature: | -10 ° C To + 65 ° C |
| Working Current: | <20mA | Operating Humidity: | 10 ~ 80% |
| Display Size: | 22 * 14 * 7mm | Sun Exposure: | No Direct Exposure |
| Color: | Red, Blue, Green, White | Port: | Shenzhen Port,guangzhou Port |
| Highlight: | 0.36 Inch Digital Ammeter Voltmeter,Digital Ammeter Voltmeter 3 Wires |
||
●High precision
●Low starting voltage, minimum 4.5V for red, 4.7V for green, and 5.0V for blue.
●With reverse connection protection, no burning if connected reversely.
Technical parameter:
Measuring range: red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V
Power supply range: No need for additional power supply, directly use the measured voltage as the power supply, the range is the same as above
The highest input: DC30.0V. Note: The input voltage higher than 30V may be permanently damaged!
Allowable error: ±1%; when greater than or equal to 10V, the error is ±0.3V; when less than 10V, the error is ±0.10
Input impedance:> 100K ohm
Working current: red <23mA, green <18mA, blue <13mA
Refresh speed: about 300mS once

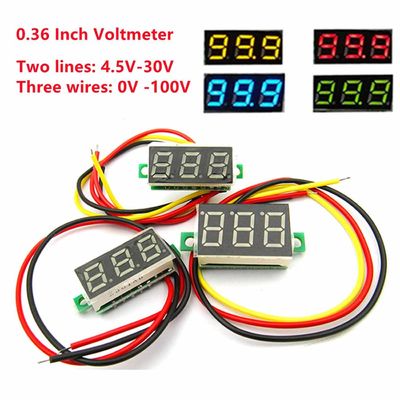

Display mode: three-digit 0.36" LED digital tube
Display color: red, green, blue optional
Lead length: 15cm
Dimensions: 23 x 15 x 10 mm
Length with mounting ears: 33mm
Mounting hole: hole distance: 28mm, aperture: 2.8mm
Net weight: 4.7g
