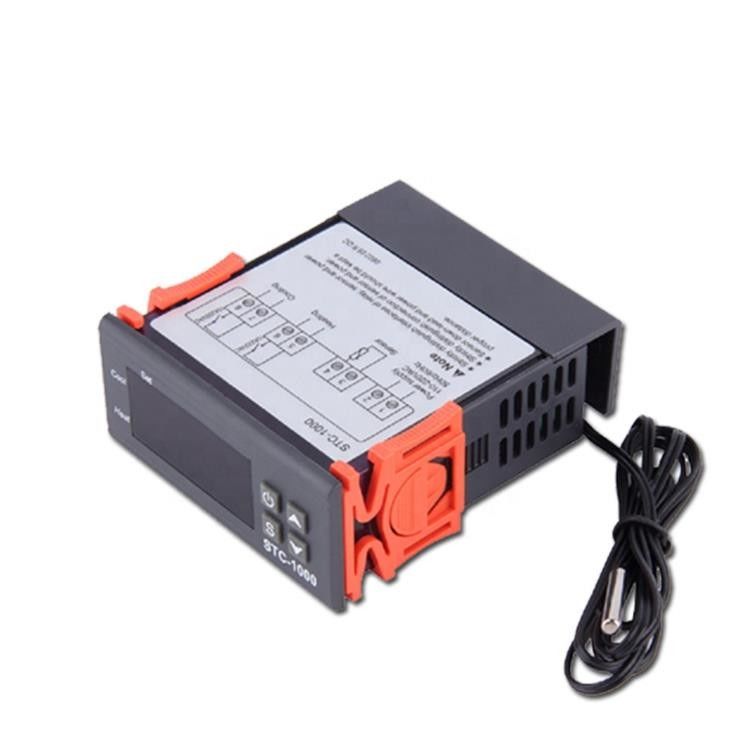

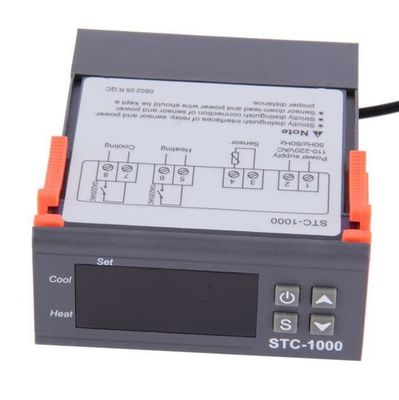

STC-1000 Digital Humidity Controller Thermostat Temperature Controller AC 110V 220V

Large Image : STC-1000 Digital Humidity Controller Thermostat Temperature Controller AC 110V 220V

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	OTHER
Model Number:	STC-1000

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Delivery Time:	5-8 work days
Supply Ability:	100000 Piece/Pieces per Day

Contact Now

STC-1000 Digital Humidity Controller Thermostat Temperature Controller AC 110V 220V

Description

Manufacturer Part Number:	STC-1000	Type:	Integrated Circuit
D/C:	STC-1000	Touch Screen Controllers:	Lead Free/RoHS
Temperature Measurement Range:	-50°C-99°C	Resolution:	0.1℃
Accuracy:	±1°C	Sensor Error Delay:	1 Minute
Power Consumption:	<3W	Storage Temperature::	-30 ° C ~ 75 ° C;
Relative Humidity::	20% ~ 85% (No Condensate)	Sensor Length:	1.0m
Port:	Shen Zhen Port	Humidity Range::	00%~99%RH
Humidity Control Accuracy::	0.1% RH	Measurement Accuracy::	+/- 2% RH
Load Power::	12v 120w Or 24v 240w Or 220v 1500w (depending On Your Choice)	MAX Output::	10A
Output Type::	Direct Output
Highlight:	STC-1000 Digital Humidity Controller , Digital Humidity Controller 110V , Thermostat Temperature Controller 220V

Specification

LED Digital STC-1000 Thermostat Temperature Controller AC 110V 220V 12V 24V 10A Incubator Temperature Controller

Technical Parameters
* 1.Temperature measuring range: -50 ° C ~ 99 ° C
* 2.Resolution: 0.1 ° C;
* 3.Accuracy:+- 1° C (-50 ° C ~ 70 ° C);
* 4.Sensor error delay: 1 minute
* 5.Power supply: AC 110-220V 50/60Hz, DC 12V, DC 24V, DC12-72V( Choose power supply when you place order ) ;
* 6.Power consumption: <3W;
* 7.Sensor: NTC sensor (1PC);
* 8.Relay contact capacity: Two Relay Cool 10A/220VAC; Heat 10A/220VAC;
* 9.Ambient temperature: 0 ° C ~ 60 ° C;
* 10.Storage temperature: -30 ° C ~ 75 ° C;
* 11.Relative humidity: 20% ~ 85% (No condensate)
* 12.Sensor length: 1.0m

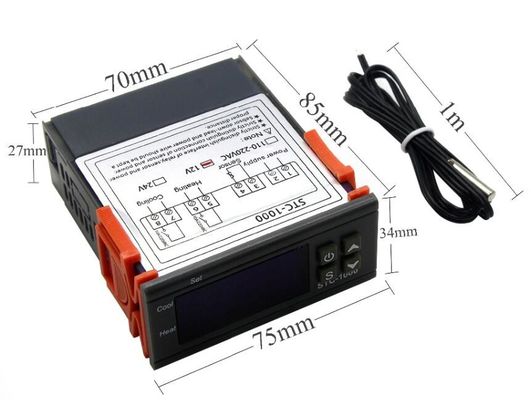

* 13. Front Panel Size: 75x34.5mm ; Product Size: 75x34.5x85 mm ; Mounting Size: 71x29mm

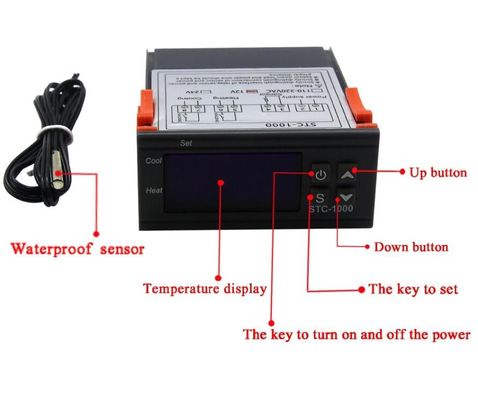

Key operation instruction
Under normal working status, press "up" key it displays temperature setting value; press "down" key it displays the differencevalue.
2. The way to set parameter:

Under controller normal working status, press "s" key for 3s or more to enter parameter modifying mode, and the "Set" indicatorlight on, screen displays the first menu code "F1".
Press "up" key or "down" key to adjust up and down and display the menu iem and the code of the menu item.Press "s" key to display the parameter value of the current menu. Press both "s" key and hold "up" key or "down" key simultaneously to choose and adjust the parameter value of the current menu value promptly. After finishing the setting, press and release the "(I)" key instantly to save the parameter modified value and return to display the normal temperature value. If no key operation within 10 seconds, system won't save modified parameter, screen back to display normal temperature.
3. Restore system data
When electrified, system will check itself, screen will display "Er" if error exit, please press any key at this time, and it
restores default value and enter into normal working mode, it is advised to reset the parameter value under such conditions.
Operation instruction
Under controller normal working status, press and hold "(I)"key for 3s can turn off the controller; Under controller "off" status, press and hold "(I)" key for 1s can turn on the controller.
Under the controller normal working status, screen displays the current measuring temperature value; also the controller can also switch the working mode between heating and cooling.

Controller starts refrigerating with cool indicator light on when the measuring temperature value >= temperature set value
+difference value, and the refrigerating relay is connected; If the “Cool” indicator light flashes, it indicates the refrigerating
equipment is under compressor delay protect status; when the measuring temperature values temperature set value, the Cool indicator light on, and refrigerating relay disconnects.
System starts heating when the measuring temperature value <= the temperature set value-difference value, and the "Heat" indicator light on, the heat relay connects; When the measuring temperature >= temperature set value, the "Heat" indicator light is off, and the heat relay disconnects.

Error/Alarm description
Alarm when sensor error: Controller activate the sensor error alarm mode when sensor open circuit or short circuit, all the
running status is closed off with the buzzer alarms, and the nixie tube displays “EE”,Press any key can cancel alarm sound, system back to display the normal temperature when the error and the fault is cleared.
Alarm when the measuring temperature exceeds temperature measuring range:Controller activates the error alarm function when the measuring temperature exceeds the temperature measuring range, all the running status is closed off with the buzzer alarms, and the nixie tube displays “HH”,Press any key can cancel alarm sound, system back to display the normal working mode when the temperature restore to normal measuring range.

Safety Regulations
★Danger:
1.Strictly distinguish the sensor down-lead, power wire and output relay interface from one another, and prohibit wrong
connections or overloading the relay.
2.Dangers: Prohibit connecting the wire terminals without electricity cut-off.
★Warning:
Prohibit using the machine under the environment of over damp, high temp., strong electromagnetism interference or
strong corrosion.
★Notice:
1.The power supply should conform to the voltage value indicated in the instruction.
2.To avoid the interference, the sensor down-lead and power wire should be kept a distanc

Product Description
