Product Details:
|
| Type: | AC DC Converter, K | Brand: | Creatall |
|---|---|---|---|
| Is Smart Device: | No | Measure Type: | K |
| Screw: | M12*1.5 | Cable Length: | 1M |
| Theory: | Temperature Controller | Usage: | Indoor |
| Max Measuring Temperature: | 49°C & Under | Display Type: | DIGITAL |
| Port: | Shenzhen Port,guangzhou Port | Humidity Range:: | 00%~99%RH |
| Humidity Control Accuracy:: | 0.1% RH | Measurement Accuracy:: | +/- 2% RH |
| Load Power:: | 12v 120w Or 24v 240w Or 220v 1500w (depending On Your Choice) | MAX Output:: | 10A |
| Output Type:: | Direct Output | ||
| Highlight: | Humidity And Temperature Controller 12V,Humidity And Temperature Controller 220V |
||
1.Be able to control temperature and humidity at the same time.
2.Be able to connect with refrigeration/ heating and humidifier/dehumidifier equipment at the same time.
3.Heating/Cooling function could be set separately for refrigeration and heating to protect temperature controller from violent change.Same as humidity Control.
S4.upporting Temp and Humidity Calibration
5.Dual Display Window,Be able to display measured temperature/humidity and set temp/humidity at the same time
Specification:

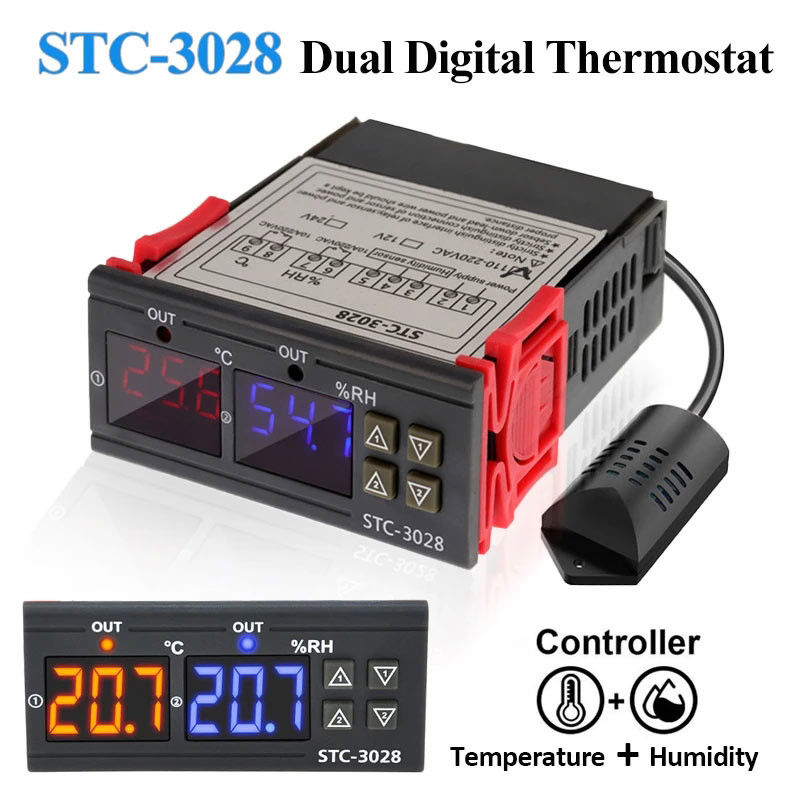

●Model: STC-3028
●Input voltage: AC110~220V, DC24V, DC12V (select the power supply when placing an order)
●Measuring temperature range: -20°～+80°
●Measuring humidity range: 00%RH～+100%RH
●Accuracy: ±1°, 0.1%RH
●Shell material: ABS flame retardant plastic
●Sensor length: 1m
Usage Method:
▲Set startup temperature(humidity):
Press the "up" button once to display the starting temperature(humidity). Long press the "up" button for about 3 seconds,The required temperature(humidity) can be set by the up and down keys
▲Set the stop temperature(humidity):
Press the "down"button once to display the stop temperature(humidity). Long press the button for about 3 seconds and the stop temperature(humidity) number flashes. The required temperature(humidity) can be set by the up and down keys
▲Temperature(hunidity)correction:
Press"up" and "down button at the same time.
