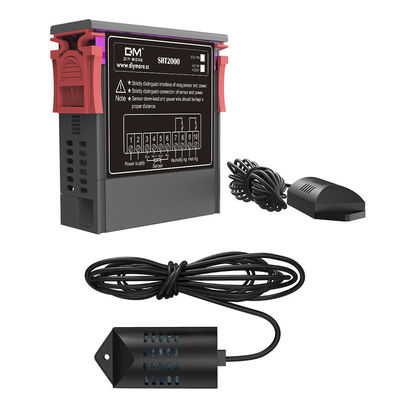

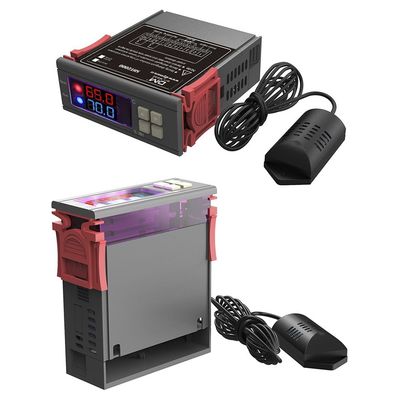

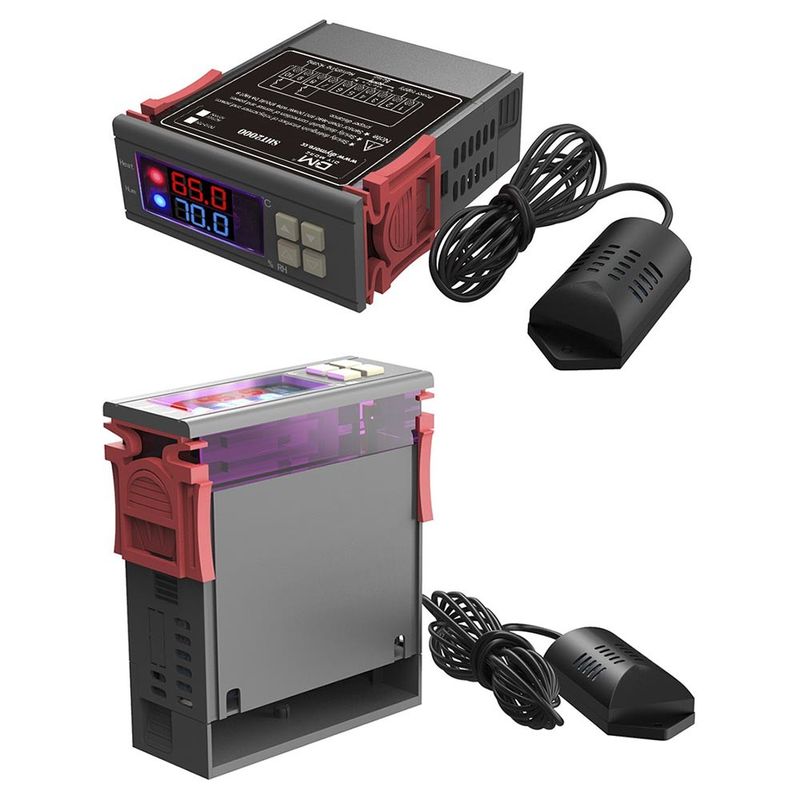

SHT2000 Digital Humidity Controller LED Hygrometer Power Switch CE

Large Image : SHT2000 Digital Humidity Controller LED Hygrometer Power Switch CE

Product Details:

Place of Origin:	China
Brand Name:	Original
Certification:	CE
Model Number:	SHT2000

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiable
Delivery Time:	5-8 work days

Contact Now

SHT2000 Digital Humidity Controller LED Hygrometer Power Switch CE

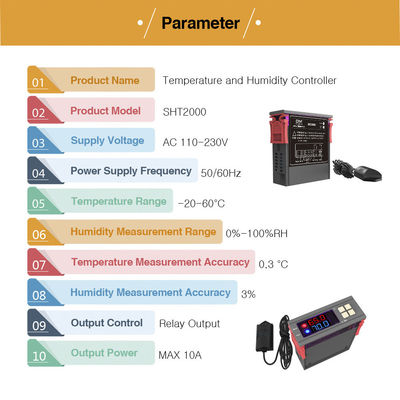

Description

Humidity Range::	00%~99%RH	Humidity Control Accuracy::	0.1% RH
Measurement Accuracy::	+/- 2% RH	Load Power::	12v 120w Or 24v 240w Or 220v 1500w (depending On Your Choice)
MAX Output::	10A	Output Type::	Direct Output
Highlight:	SHT2000 Digital Humidity Controller , Digital Humidity Controller CE , LED Hygrometer Power Switch

Digital Temperature Humidity Controller SHT2000 LED Thermoregulator Thermostat Humidistat Hygrometer Switch

Description:

Setting method: Start value Setting method: Start value > stop value (the program automatically determines the working mode is cooling/dehumidifying mode)
Heating/cooling mode setting
Setting mode: setting (starting temperature): Press and hold the button to start the temperature flashing. Use key to set the starting temperature value.
Setting (stop temperature): Press and hold the button to stop the temperature flashing. Use to set the stop temperature value.

Heating use case:

control the water heater, heat to 65 ° C to stop, the temperature drops back to 50 ° C and start heating again

The first step: heating mode, starting temperature

Step 2: Press and hold the button to start the temperature flashing. Use to set the starting temperature to 50 °C.

Step 3: Press and hold the button to stop the temperature flashing. Set the stop temperature to 65 °C with keys, and the setting is completed!
Refrigeration use case: use in the farm, the fan is ventilated to 26 ° C to stop, the temperature is raised to 30 ° C and the ventilation is started again.

The first step: cooling mode, starting temperature > stop temperature

Step 2: Press and hold the button to start the temperature flashing. Use to set the starting temperature to 30 °C.

The third step: long press the button to stop the temperature flashing, set the stop temperature to 26 °C by , the setting is completed!

Humidification/Dehumidification Mode Settings:

Setting (start humidity): Press and hold key to start the humidity value flashing. Set the humidity value by key. Set [Stop Humidity]: Press and hold key to stop the humidity value flashing, and set the humidity to stop by key value.

Humidification example: fresh supermarket humidification, control humidifier 50% RH began to humidify, humidified to 80% RH to stop humidification.
Setup steps:

Step 1: Press and hold the button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 50% RH.

Step 2: Press and hold the button for 3 seconds to stop the humidity value flashing. Set the value to 80% RH. After the setting is completed, the button will be operated for 5 seconds without returning to the normal display state.

Dehumidification example: workshop control exhaust dehumidification system, humidity 70% RH starts dehumidification, humidity 40% RH stops dehumidification

Setup steps:

Step 1: Press and hold the button for 3 seconds to start the humidity value flashing, and set the starting humidity value to 40%RH.

Step 2: Press and hold the button for 3 seconds to stop the humidity value flashing, set the value to 70% RH, the setting is completed, the button does not operate for 5 seconds, and automatically returns to the normal display state.
